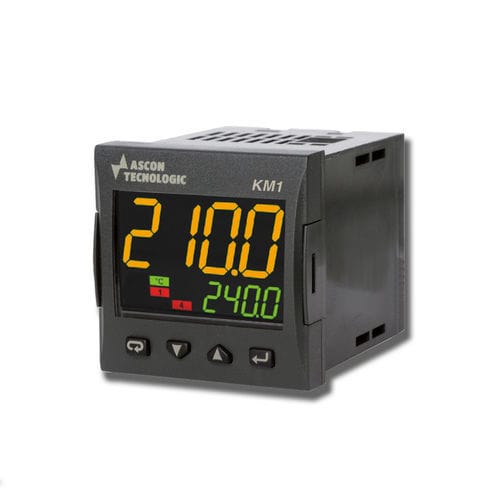

Temperature controller with independent timer KM1

digitaldual-displayPID

Controller with independent timer KUBE series: the evolution that has something more! Pocket size, energy saving and advanced functions: -evoGreen – for Energy Saving -evoTune – for “trouble-free” adjustment -evoTools – code-based configuration for fast commissioning and programming key for instant parameterization -User calibration for sensor position compensation -Independent timer function with 5 operating modes -Hour meter/working days with 2 functions and programmable alarm -Calculation of power and energy consumption (Wattmeter) -Freely customizable parameter sequence FUNCTION - Controller DIMENSIONS - 48 x 48 mm DISPLAY - 2 display with 4 digit 3 dynamic colours POWER SUPPLY - 24 Vac/Vdc, 100… 240 Vac INPUTS - 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, Pt1000, PTC-NTC, Thermocouple, Universal NUMBER OF OUTPUTS - 1, 2, 3, 4 OUTPUTS - Relay and/or SSR control DIGITAL INPUTS - 1, 2 INDEPENDENT TIMER - Yes INTERFACE - RS 485 Modbus Slave, TTL Modbus SPECIAL FUNCTIONS - Digital retransmission, Hours/Days worked, ON time, Power on delay, Soft start, Transmitter power supply, User calibration, Wattmeter CONTROL - ON/OFF and PID single or double action EXTRACTABILITY - Not extractable, With fix terminal block, With removable terminal block CERTIFICATIONS - CE, UL
