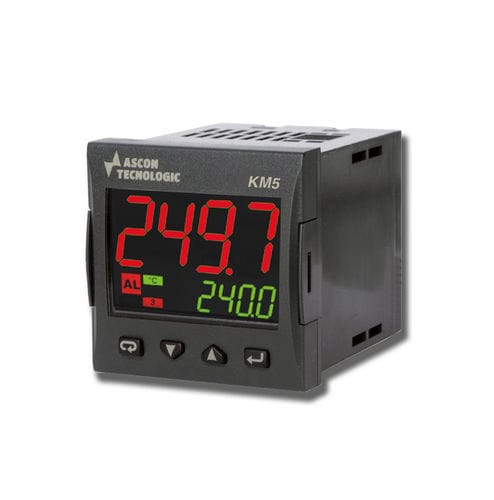

Programmable temperature regulator KM5
double LED displayPIDIP65

Programmable temperature regulator - KM5 - ASCON TECNOLOGIC - double LED display / PID / IP65
Programmable temperature regulator - KM5 - ASCON TECNOLOGIC - double LED display / PID / IP65
Programmable temperature regulator - KM5 - ASCON TECNOLOGIC - double LED display / PID / IP65 - image - 2
Programmable temperature regulator - KM5 - ASCON TECNOLOGIC - double LED display / PID / IP65 - image - 3
Programmable temperature regulator - KM5 - ASCON TECNOLOGIC - double LED display / PID / IP65 - image - 4
Programmable temperature regulator - KM5 - ASCON TECNOLOGIC - double LED display / PID / IP65 - image - 5
Programmable temperature regulator - KM5 - ASCON TECNOLOGIC - double LED display / PID / IP65 - image - 6
Programmable temperature regulator - KM5 - ASCON TECNOLOGIC - double LED display / PID / IP65 - image - 7
Programmable temperature regulator - KM5 - ASCON TECNOLOGIC - double LED display / PID / IP65 - image - 8
Programmable temperature regulator - KM5 - ASCON TECNOLOGIC - double LED display / PID / IP65 - image - 9
Add to favorites
Compare this product


Characteristics

Display
double LED display
Type
PID, programmable
Protection level
UL, IP65
Use
industrial
Other characteristics
configurable, RS-485, universal, panel-mount, 4-20 mA
Maximum temperature

Max.: 1,760 °C
(3,200 °F)

Min.: -200 °C
(-328 °F)

Description

Controller-programmer with 96 segments divisible into 8 programs Let us organize your “programs”! The KUBE series programmers are equipped with many interesting functions, for example: • “Segment recovery” + “elapsed time recovery”, ie in the event of a power failure, program execution can restart from the point where it was interrupted (accuracy 1 minute) • Possibility to manage sequences up to 4 programs even with different time base (h/min-min/s) • Up to 999 Repetitions FUNCTION - Programmer, Transmitter, Controller DIMENSIONS - 48 x 48 mm DISPLAY - 2 display with 4 digit 3 dynamic colours POWER SUPPLY - 24 Vac/Vdc, 100… 240 Vac INPUTS - 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, Pt1000, PTC-NTC, Thermocouple, Universal NUMBER OF OUTPUTS - 1, 2, 3, 4 OUTPUTS - 0/2… 10 V, 0/4… 20 mA, Relay and/or SSR control, Servomotor DIGITAL INPUTS - 1, 2 NUMBER OF PROGRAMS / SEGMENTS - 1 program with 16 segments, 1 program with 8 segments, 4 programs with 16 segments, 8 programs with 12 segments RETRANSMISSION OUTPUT - 0/2… 10 V, 0/4… 20 mA INTERFACE - RS 485 Modbus Slave, TTL Modbus SPECIAL FUNCTIONS - Digital retransmission, ON time, Power on delay, Soft start, Transmitter power supply, User calibration CONTROL - ON/OFF and PID single or double action, Servomotor EXTRACTABILITY - Not extractable, With fix terminal block, With removable terminal block CERTIFICATIONS - CE, UL
