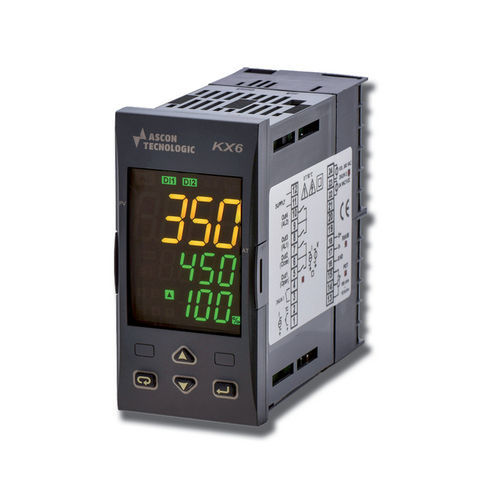

Servo motor servo-controller KX6

DCACdigital

Valve control controller The controller that learns everything by itself! Designed for valve control … but not only. • Automatic learning of the running time • Automatic learning of the potentiometer value • Automatic open loop switching 1 potentiometer input 100 ohm … 10k ohm FUNCTION - Controller DIMENSIONS - 48 x 96 mm DISPLAY - 3 display POWER SUPPLY - 24 Vac/Vdc, 100… 240 Vac INPUTS - 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Thermocouple NUMBER OF OUTPUTS - 1, 2, 3, 4 OUTPUTS - 0/2… 10 V, 0/4… 20 mA, Relay and/or SSR control, Servomotor DIGITAL INPUTS - 1, 2 NUMBER OF PROGRAMS / SEGMENTS - 1 program with 16 segments, 1 program with 8 segments, 4 programs with 16 segments, 8 programs with 12 segments RETRANSMISSION OUTPUT - 0/2… 10 V, 0/4… 20 mA INTERFACE - RS 485 Modbus Slave, TTL Modbus SPECIAL FUNCTIONS - Digital retransmission, ON time, Power on delay, Soft start, Transmitter power supply, User calibration CONTROL - ON/OFF and PID single or double action, Servomotor EXTRACTABILITY - With fix terminal block, With removable terminal block CERTIFICATIONS - CE, UL
