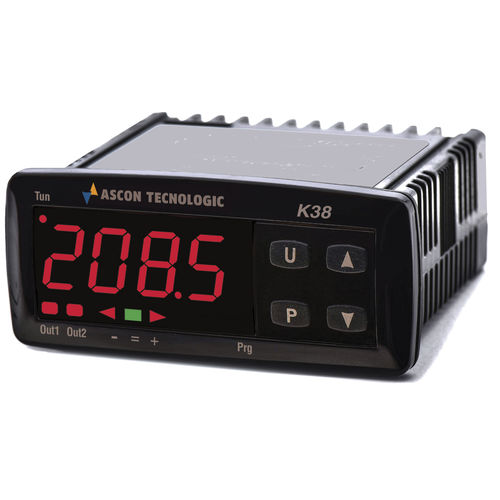

Digital temperature regulator K38PIDprogrammableIP65
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Type
- PID, programmable
- Protection level
- UL, IP65
- Use
- process
- Other characteristics
- configurable, panel-mount, with independent timer, mini
- Maximum temperature
Min.: -30 °C
(-22 °F)Max.: 70 °C
(158 °F)
Description
Mini-programmer controller with independent timer
K Series: years of experience behind these versatile and performing instruments.
Programming is carried out simply from the keyboard, via programming devices, or via a PC.
FUNCTION -
Programmer, Controller
DIMENSIONS -
78 x 35 mm
DISPLAY -
1 display with 4 digit
POWER SUPPLY -
12 Vac/Vdc, 24 Vac/Vdc, 100… 240 Vac
INPUTS -
0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, PTC-NTC, Thermocouple
NUMBER OF OUTPUTS -
1, 2
OUTPUTS -
Relay and/or SSR control
INDEPENDENT TIMER -
Yes
NUMBER OF PROGRAMS / SEGMENTS -
1 program with 8 segments
INTERFACE -
TTL Modbus
SPECIAL FUNCTIONS -
Digital retransmission, Hours/Days worked, Power on delay, Soft start, Transmitter power supply, User calibration, Wattmeter
CONTROL -
ON/OFF and PID single or double action
EXTRACTABILITY -
Not extractable, With fix terminal block
CERTIFICATIONS -
CE, UL
