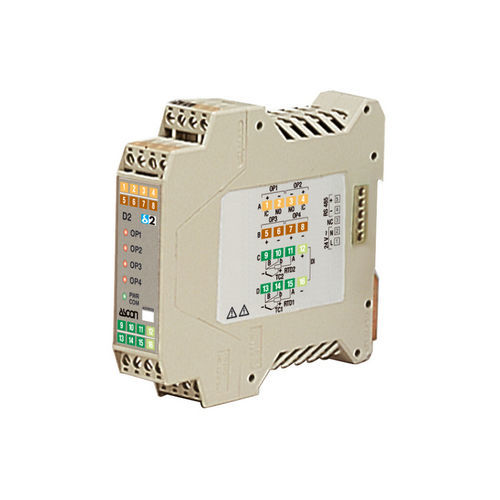

Temperature controller without display D2

LEDPID2-loop

Temperature controller with two isolated loops Two loops in the room of one. The single bus for power supply and serial communication, the total extractability, the easy replacement even under voltage, the digital input to use remote controls, the possibility of acquiring or regulating up to two analog variables makes the D2 line deltadue®, a powerful and flexible instrument, suitable for solving various problems of signal management from the field. In combination with the DX module it can be inserted in Profibus DP® and DeviceNet® networks, with the possibility of automatic reconfiguration. FUNCTION - Controller DIMENSIONS - DIN rail mounting POWER SUPPLY - 24 Vac/Vdc INPUTS - 0/4… 20 mA, Delta T Pt100, Pt100, Thermocouple, Universal NUMBER OF OUTPUTS - 1, 2, 3, 4 OUTPUTS - Relay and/or SSR control DIGITAL INPUTS - 1 INTERFACE - RS 485 Modbus Slave SPECIAL FUNCTIONS - Soft start, User calibration CONTROL - ON/OFF and PID single or double action EXTRACTABILITY - By the front CERTIFICATIONS - CE, UL
