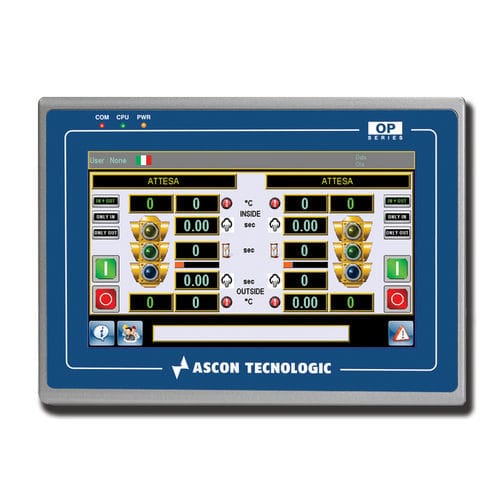

Operator panel with 9.7″ color graphic touchscreen display
Programmable with “Easy Builder Pro” software (optional)
FUNCTION -
Operator panel
DIMENSIONS -
L x H x D 260.6 x 203.1 x 36.5 mm
DISPLAY -
TFT 9.7" LED backlitted
POWER SUPPLY -
24 Vdc
SPECIAL FUNCTIONS -
Easy access for integrated remote management
COLOURS -
262k
RESOLUTION -
1024 x 768 pixel
BRIGHTNESS (CD/M²) -
350
MEMORY -
256 MB RAM, 512 MB FLASH
RTC -
Yes
USB -
Host
ETHERNET -
Yes
COMMUNICATION PORTS -
COM1 RS232 COM2 RS485 2 and 4 wires COM3 RS 485 2 wires / RS 232
CERTIFICATIONS -
CE
