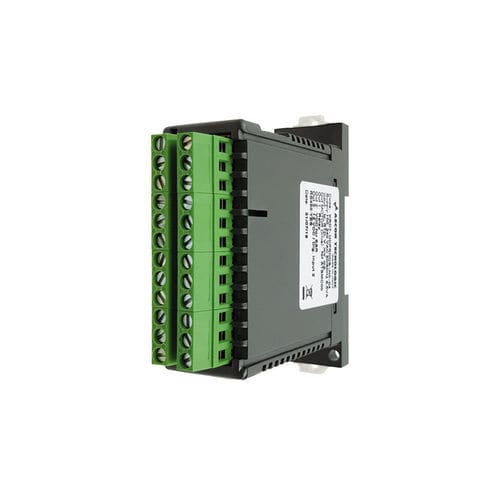

Digital temperature controller KRD3

analogPIDprogrammable

Mini-programmer controller with independent timer KUBE series: the evolution that has something more! In addition to the normal functions of temperature controller, there are several advanced functions: -evoTune – for “trouble-free” adjustment -evoTools – coded configuration for quick commissioning and programming key for instant parameterization -8-segment programmer function with “segment recovery -User calibration for sensor position compensation -Independent timer function with 5 operating modes -Hour counter/working days with 2 functions and programmable alarm -Calculation of the power and energy consumed (Wattmeter) -Freely customizable sequence of parameters FUNCTION - Programmer with independent timer, Controller DIMENSIONS - 78 x 35 mm POWER SUPPLY - 24 Vac/Vdc, 100… 240 Vac INPUTS - Universal + 2 digital NUMBER OF OUTPUTS - 4 OUTPUTS - Relay or voltage INDEPENDENT TIMER - Yes SPECIAL FUNCTIONS - Digital retransmission, Hours/Days worked, ON time, Power on delay, Soft start, Transmitter power supply, User calibration, Wattmeter CONTROL - ON/OFF and PID COMMUNICATION - RS 485 Modbus Master, TTL Modbus + RS 485 isolated ANALOG OUTPUTS IN CURRENT OR VOLTAGE - 1 PROGRAMMER - Yes MEASUREMENT OR SET POINT RETRANSMISSION - Yes CERTIFICATIONS - CE, UL
