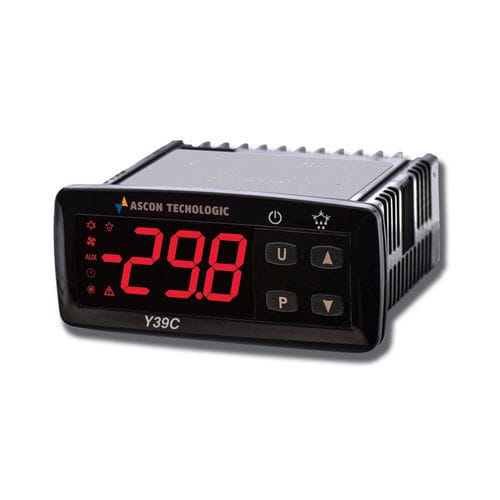

Digital temperature controller Y39C

with LCD displayprogrammableIP65

Controller for refrigerating units, 3 inputs, 3 outputs and Real Time Clock, Energy Saving function In addition to all the functions already available in the Y series, this controller can perform defrost cycles in real time, thanks to the Real Time Clock function. The device is equipped with special defrost functions in order to obtain energy savings for the controlled system. FUNCTION - Controller for refrigeration units, Controller DIMENSIONS - 78 x 35 mm DISPLAY - 1 display with 3 digit POWER SUPPLY - 12 Vac/Vdc, 24 Vac/Vdc, 100… 240 Vac INPUTS - 1 digital, NTC, Pt1000, PTC-NTC OUTPUTS - Relay DIGITAL INPUTS - 1 INTERFACE - RS 485 with external module A30, TTL Modbus SPECIAL FUNCTIONS - Acoustic alarm (buzzer), Duty cycle function, Energy saving, Real time clock, Remote display (TVR) CONTROL - ON/OFF DEFROST CONTROL - At intervals with electric heating or hot gas / reverse cycle, At intervals with for compressor stop, electric heating or hot gas/reverse cycle, With Real Time Clock for compressor stop CERTIFICATIONS - CE, UL
