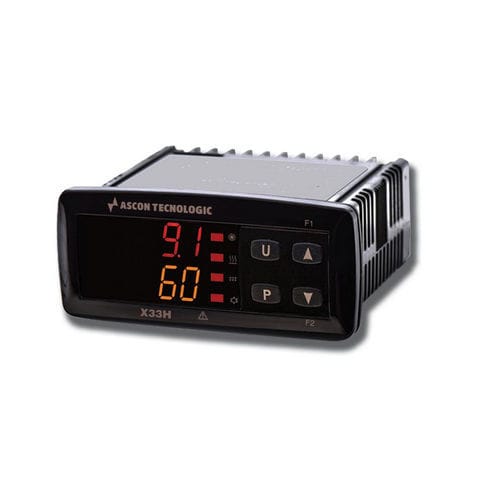

Digital temperature controller X33H

dual-displayprogrammableIP65

Temperature and humidity controller with programmable cycles and defrost control It’s an instrument dedicated to temperature and humidity control. Thanks to the possibility of managing programmable work cycles and defrosting control, it can typically be used for the control of seasoning cells, stopping-levitation cabinets, climatic chambers and many other applications. The instrument has up to 4 relay outputs, 3 inputs for PTC or NTC temperature probes (2 of which can also be used as digital inputs), 1 input for 0/4..20 mA humidity probes, and a digital input, all fully configurable. FUNCTION - Controller DIMENSIONS - 78 x 35 mm DISPLAY - 2 display with 4 digit POWER SUPPLY - 100… 240 Vac INPUTS - 0/4… 20 mA, 1 digital, NTC, PTC-NTC NUMBER OF OUTPUTS - 1, 2, 3, 4 OUTPUTS - Relay DIGITAL INPUTS - 1, 2, 3, 4 INTERFACE - RS 485 with external module A30, TTL Modbus SPECIAL FUNCTIONS - Acoustic alarm (buzzer), Remote display (TVR), T+RH% control, Transmitter power supply CONTROL - ON/OFF EXTRACTABILITY - Not extractable, With fix terminal block, With removable terminal block DEFROST CONTROL - At intervals with electric heating or hot gas / reverse cycle, At intervals with for compressor stop CERTIFICATIONS - CE
