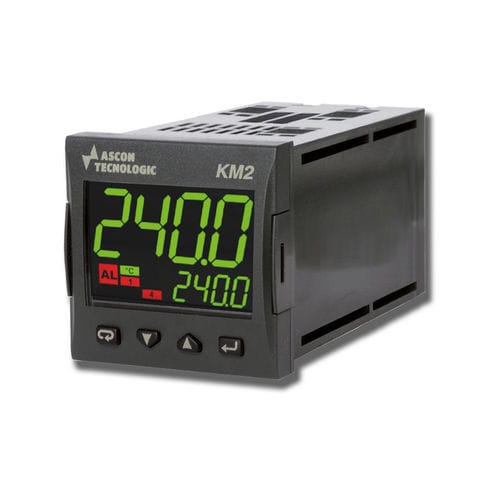

Double LED display temperature regulator KM2

PIDIP65UL

Controller, programmer with Heater Break (HB) function This controller combines all the existing functions on the Kube line with the Heater Break Down Alarm (HB) function which allows you to keep the condition of the load under control and signal if a fault occurs in the heating element. It is the ideal instrument to put on the shelf as it is the most complete in terms of resources on board: extended switching power supply and universal input. FUNCTION - Programmer, Transmitter, Controller DIMENSIONS - 48 x 48 mm DISPLAY - 2 display with 4 digit 3 dynamic colours POWER SUPPLY - 24… 240 Vac/Vdc INPUTS - 0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, 1 digital, NTC, Pt100, Pt1000, PTC-NTC, Thermocouple, Universal NUMBER OF OUTPUTS - 1, 2, 3 OUTPUTS - 0/2… 10 V, 0/4… 20 mA, Relay and/or SSR control DIGITAL INPUTS - 1, 2 AUXILIARY INPUT - Current transformer INDEPENDENT TIMER - Yes NUMBER OF PROGRAMS / SEGMENTS - 1 program with 8 segments SPECIAL FUNCTIONS - Hours/Days worked, Transmitter power supply, User calibration, Wattmeter CONTROL - ON/OFF and PID single or double action CERTIFICATIONS - CE, UL
