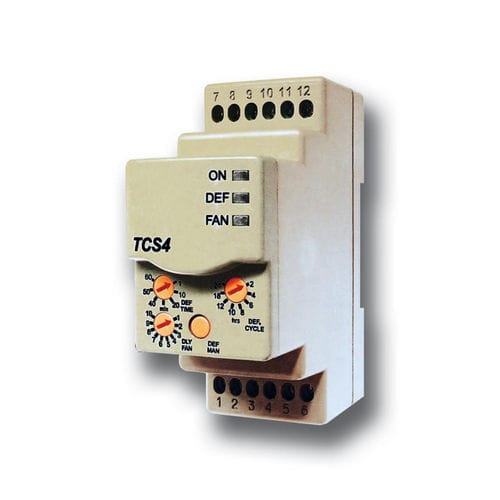

Electronic timer TCS4

DIN railfor refrigeration systems

It is an electronic timer that can be used in refrigeration systems to manage defrost cycles. The instrument, in addition to checking the interval and duration of the defrost cycles, can interrupt the defrost cycle when the temperature is reached (using an external thermostat with NC contact to be typically placed on the evaporator), stop the operation of the fans and delay their start at the end of a cycle. By means of a button on the front it is also possible to perform manual defrosting. FUNCTION - Defrost timer DIMENSIONS - L x H x D 35 x 90 x 73 mm POWER SUPPLY - 100… 240 Vac INPUTS - End defrost, for free voltage contacts NUMBER OF OUTPUTS - 2 CERTIFICATIONS - CE
