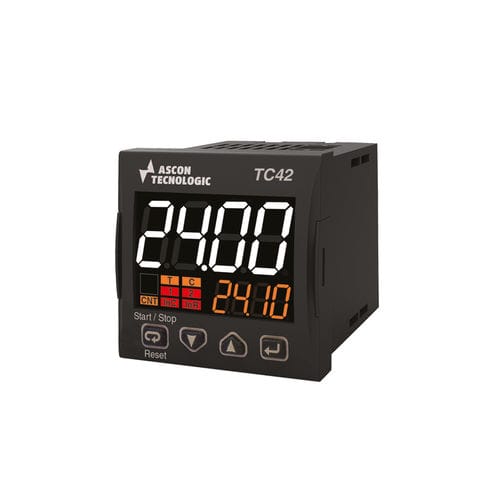

Digital indicator controller TC42

powertimepanel-mount

The instrument used as a timer offers the possibility to program: - up to 3 set points - 6 operating modes for the OUT1 output - 10 operating modes for the OUT2 output - 4 time scales (which allow a count from a maximum of 9999 hours to a minimum of 0.01 sec.) - 6 counting enabling functioning modes and 2 counting modes (UP or DOWN). The instrument used as a counter offers the possibility to program: - up to 2 set points - 3 operating modes for the OUT1 output - 4 operating modes for the OUT2 output - and offers the possibility of dividing the count. Finally, the instrument can also be used as a power limiter by programming a duty-cycle from 0 to 100% and a total cycle time from 1 to 900 sec. The programming of the operating parameters can take place, as well as from the keyboard, also through the A01 device connected to the TTL port (standard) or through NFC communication (optional).
