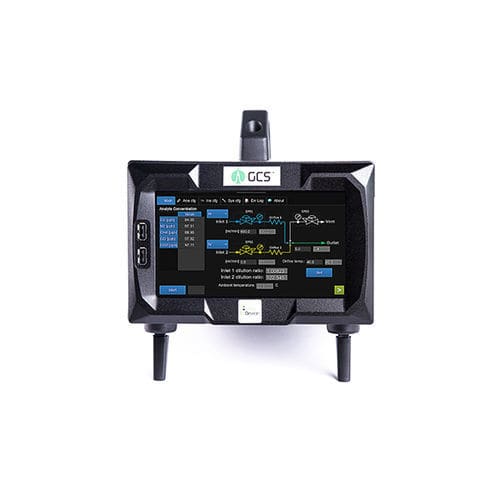

Calibration system GCS

Gas calibration and analytical system performance validation depends on knowing how to accurately dilute gas standards. Our high-end dilution system (GC blender), based on a laser-calibrated orifice, is the result of over 30 years of experience in the field, so you can count on unparalleled precision. Features Sonic orifice technology with high dilution ratios from 1:2 to 1:3500 (Custom up to 1:10000) High precision (<0.5%rel.) High sample integrity with purged electronics pressure regulator Heated flow path up to 200°C User configurable orifice User selectable gas Optional inert flow path for sulfur and reactive gas analysis NIST traceable certificate available Typical applications Gas analyzer manufacturing Gas standard preparation Gas analyzer performance validation Research and development Solution highlights Higher precision Precision can only be achieved with highly exact, stable components. Our sonic orifices are laser drilled into stainless steel gaskets, ensuring that the orifice’s properties remain stable over time. Enhanced stability Pressure and temperature must be stable. That’s why we use a highly stable, temperature-compensated pressure sensor in our electronics pressure controller (EPC). What’s more, the orifices are installed inside a heated, adjustable enclosure, and the temperature can be adjusted up to 200 ⁰C to better accommodate your gas sample.
