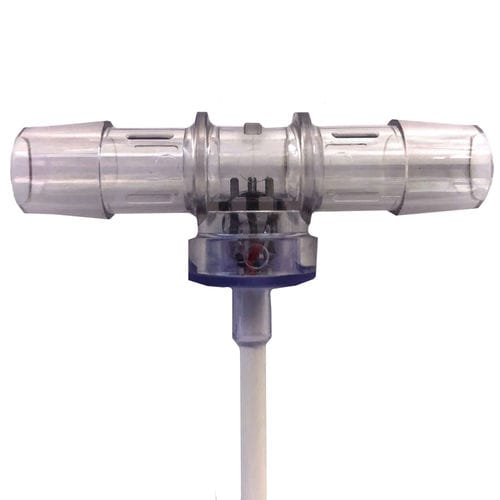

Thermal conductivity sensor

digital4-20 mARS-232

Our Single-Use Conductivity Sensors™ and Conductivity monitor integrate for highly accurate conductivity and temperature measurement without the need to calibrate the conductivity electrode because of its predetermined cell constant. For use in critical bioprocess operations the sensor monitor reads conductivity and temperature from up to two sensors. No calibration is required because the cell constant must be entered when new sensor is connected. There is temperature normalization to 25°C with an adjustable mS/ °C factor. The monitor has 4 – 20mA outputs for both conductivity and temperature and an RS232 output for data collection to a PC. TYPICAL APPLICATIONS •Filtration FEATURES AND BENEFITS Sensor specifications •Range: 0.1 to 100 mS/cm •Accuracy: •from 0.1 to 2 mS/cm +/- 0.1 mS/cm •2 to 50 mS/cm +/- 5% of reading •50 to 100 mS/cm typically +/- 5% of reading •Pressure Rating: 75 psi (5 bar) * Fluid path materials •Gamma compatible •NaOH resistant •USP Class VI •Temperature measurement for compensation by monitor •No calibration required because of pre-determined cell constant and also one-point calibration by user optional •Low cost for single use applications; may be repeatedly cleaned and re-used Monitor Specifications •Reads conductivity and temperature from sensor •Reads 2 sensors; including ability to read temperature only •Perform temperature normalization to 25°C •With adjustable mS/ °C factor •Default factor of 2.1% per °C * 4 – 20mA outputs for both conductivity and temperature •RS232 output for data collection to a PC •Panel mount kit and desktop stand available
