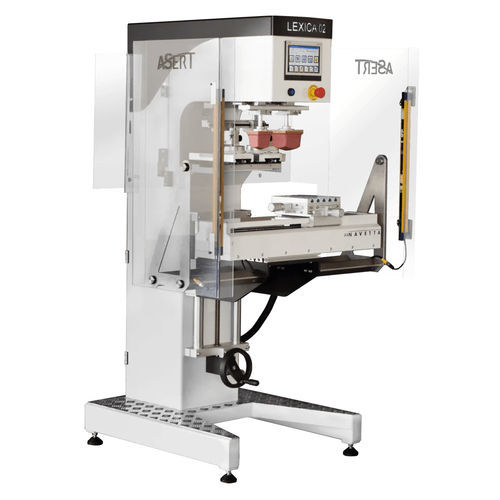

state-of-the-art pad printing machine, designed to raise the standards of quality and efficiency in various industrial applications. It is ideal for those looking for high print quality.
Main characteristics:
• Print up to 4 colors for applications requiring maximum quality
• Brushless motors for superior precision and high printing force
• High level performance for efficient production
• Advanced connectivity for easy integration into your workflow
Technical Specifications
• Available with 2 types of setup for positioning the glasses: Trays or Cliché Plate
• Max number of colours: 4
• It can fit both circular and oval glasses.
• Max print diameter: Ø 85 mm
• Max glasses size: Ø 90 (circular) – 135×70 mm (oval)
• Max cliché size: 400×290 mm
• Doctor stroke: 160 mm
• Horizontal stroke: 160 mm
• Vertical travel: 145 mm
• Max pad height: 110 mm to 160 mm
• Drive: Electronic
• Power supply: 230V 50-60 Hz
• Weight: 310 kg
• Average energy consumption: 1.5 kWh
• Additional length with rear door opening: 310 mm
• Different sized guards available based on the machine configuration
• layout with protections for 400 stroke linear index configuration
Standard Color Setup Configuration
• 1 color Ø 60 (1) – Ø 90 (1) – 70×135 (1)
• 2 colors Ø 60 (2) – Ø 90 (2) – 70×135 (2) – Ø 60 (1) + 70×135 (1) Ø 90 (1) + 70×135 (1)
• 3 colors Ø 60 (2) – 3 colors Ø 90 (3)
• 4 colors Ø 60 (2) – 4 colors Ø 60 (4)
