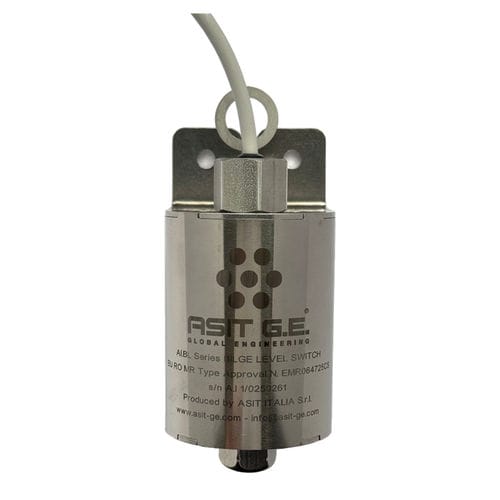

Magnetic float level switch AI.BL Serieselectromechanicalfor waterfor oil
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float, electromechanical
- Medium
- for water, for oil, for fuel
- Applications
- for marine applications, bilge
- Material
- stainless steel
- Mounting
- vertical
- Other characteristics
- compact, IP68, rugged
- Process temperature
Max.: 120 °C
(248 °F)Min.: -10 °C
(14 °F)- Process pressure
Max.: 20 bar
(290.08 psi)Min.: 0 bar
(0 psi)
Description
Bilge Level Switch
Body entirely AISI 316 L stainless steel
Maximum operating pressure 20 BAR
Maximum operating temperature -10 / + 120 ° C
Average specific weight> = 600Kg / m3
SPDT exchange contact ( C-NC-NO)
Rating 250VAC / DC 60W / VA
Switch current 1A / line current 2A
Direct output cable 2 m, without box connection
Protection IP 68 resinated with double seal
Assembly with 2-hole bracket in AISI 316 L
Version complete with test lever in AISI 316 L
Naval Type approval: RINA
Ideal for marine applications or bilge fluid control, with MARINE TYPE APPROVAL , from the RINA shipping register
