Diaphragm pressure switch AI.MZHRPDpistondifferentialSPDT
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm, piston
- Pressure type
- differential
- Contact type
- SPDT
- Electrical connection
- terminal block
- Mounting
- panel-mount, wall-mounted
- Process connection
- BSP 1/4, NPT 1/4
- Material
- aluminum, plastic
- Protection level
- IP66
- Pressure range
Max.: 3.6 bar
(52.21 psi)Min.: 0.1 bar
(1.45 psi)
Description

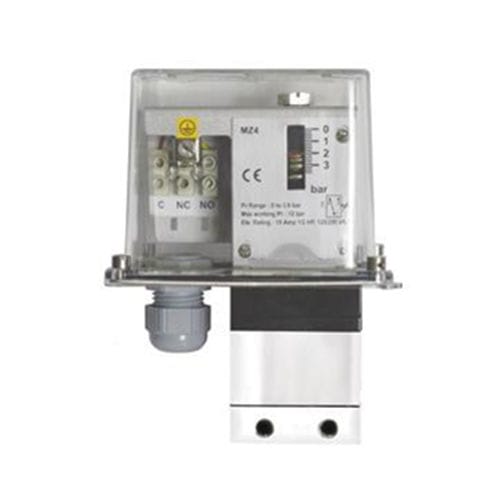

MZ Series pressure switches have been designed for apllications that require cost effective outdoor mounting, in aggressive environments.
The polycarbonate cover, fitted on a stainless steel base, retayned by SS screws offers excellent resistance to corrosion and also allows a view of the internal scale and working of the pressure
switch. The microswitch offers narrow deadband, switching values, which have excellent repeatabilty. By using appropriate capsules and wetted parts, MZ series pressure switches can be used for thousands of applications.
Approximate Weight : 0.550 Kg.
Some Applications : Used in humid or slightly corrosive atmosphere like jet dyeing machines, etc.
