Fuel level gauge AI.LCoemfor dieselfloatfor tank
Add to favorites
Compare this product
Characteristics
- Fluid
- fuel, for diesel
- Technology
- float
- Applications
- for tank, for water reservoir management, for marine applications
- Other characteristics
- stainless steel, threaded, top-mounted, analog output, top of tank
Description

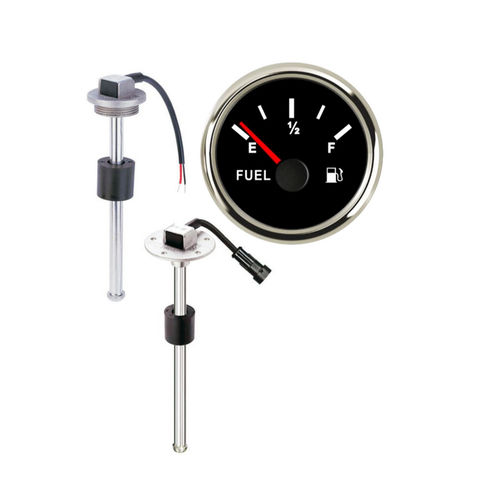

The low cost level indicator Model AI.LCoem is suitable for measuring the level of fuel in the tank.
It will be easy to install the display on the dashboard and connect it to the sensor, mounted on the tank via the cable.
•Suitable for tanks with heights from 100 mm up to 2000 mm
•Fluid: Fuel
•Probe material: SS316
•Float material: plastic
•Backlit display
•Cable length 2 m: direct output or via connector
•Probe process connection: threaded 1 1/2" NPT, 1 1/4" BSP or SAE standard 5 holes flanged
•Power supply: 10-32 V
•Output: Output resistance: 0~190Ω, 240~33Ω
