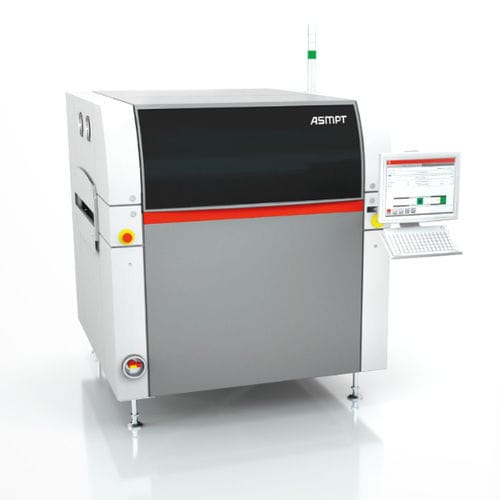

Automatic stencil printer DEK NeoHorizon

solder pasteSMTuniversal

Maximum flexibility for the integrated smart factory Attractive Financing With its modular and scalable configuration options, the DEK NeoHorizon printer meets any process requirements and offers best flexibility for any production volumes DEK NeoHorizon Innovations Best printing offering to cover all your needs DEK NeoHorizon 03 iX: • Machine Alignment Capability: ±12.5 µm @ 2.0 Cmk, (±6 Sigma) • System Alignment Capability: +/- 20μm @ 2.0 Cmk, (±6 Sigma) • Wet Print Capability: ±25 µm @ 2.0 Cpk, (±6 Sigma) - Certified by external system for every printer before delivery by standard • Core Cycle Time (CCT): 8 sec. • Perfect printing solution for best performance in high-mix production DEK NeoHorizon 01 iX: • Machine Alignment Capability: ±12.5 µm @ 2.0 Cmk, (±6 Sigma) • System Alignment Capability: +/- 15μm @ 2.0 Cmk, (±6 Sigma) • Wet Print Capability: ±20 µm @ 2.0 Cpk, (±6 Sigma) - Certified by external system for every printer before delivery by standard • Core Cycle Time (CCT): 6.5 sec. • Best printing quality with maximum throughput DEK NeoHorizon Back-to-Back: The DEK NeoHorizon Back-to-Back setup offers higher print performance in dual-lane assembly line DEK NeoHorizon Options DEK provides the industry’s most powerful and flexible printing platforms. The following retrofittable DEK options help you further improve productivity and print quality on your DEK NeoHorizon printer:​ • Full flexible DEK All Purpose Clamping (APC) system​ • High flexibility and maximum cleaning performance with DEK Typhoon Cleaner • DEK Grid-Lok: the universal board support system​
