Tape position sensor positape® WB21
magneticanalog outputCANopen

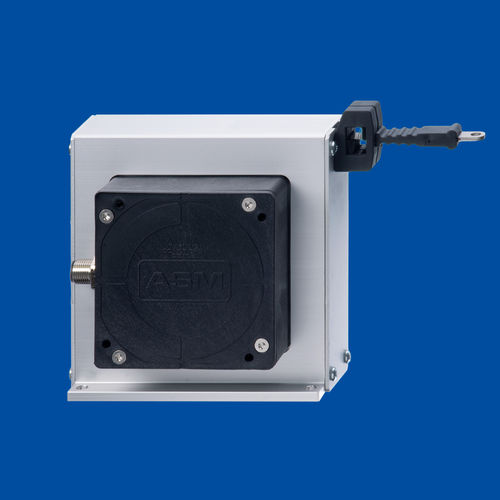

Tape position sensor - positape® WB21 - ASM Automation Sensorik Messtechnik GmbH - magnetic / analog output / CANopen
Tape position sensor - positape® WB21 - ASM Automation Sensorik Messtechnik GmbH - magnetic / analog output / CANopen
Add to favorites
Compare this product

Go to the ASM Automation Sensorik Messtechnik GmbH website for more information

Characteristics

Type
tape
Technology
magnetic
Output signal
analog output, CANopen, CAN bus, with SSI interface
Protection class
IP67, IP69
Measuring range

20,000 mm
(787.4 in)

Linearity

0.1 %

Ambient temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

Output - Voltage 0.5... 10 V Voltage 0.5... 4.5 V Current 4 ... 20 mA, 3-wire technology Voltage or current output, programmable Voltage or current output, redundant Resolution - Up to 0.05 mm Linearity - Up to ±0.05 % f.s. Sensing device - Magnetic absolute encoder Housing material - Aluminum and PBT Measuring tape: stainless steel, 10 mm wide, 0.08 mm thick Connection - Connector M12 Weight - Max. 4 kg

Catalogs

WB21
WB21
26 Pages
Go to the ASM Automation Sensorik Messtechnik GmbH website for more information
