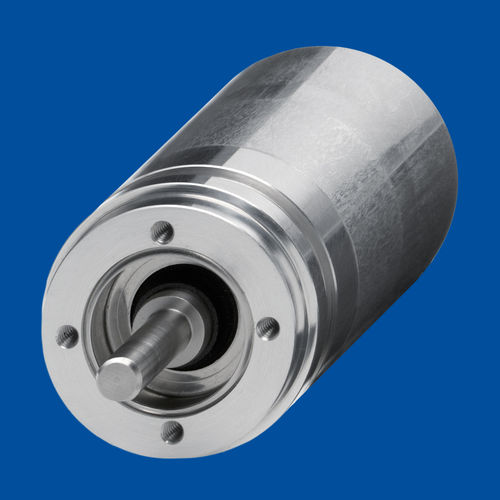

Multi-turn angle encoder posihall® PH36
absolutemagneticsolid-shaft

Multi-turn angle encoder - posihall® PH36 - ASM Automation Sensorik Messtechnik GmbH - absolute / magnetic / solid-shaft

Add to favorites

Compare this product

Go to the ASM Automation Sensorik Messtechnik GmbH website for more information

Characteristics

Type: absolute
Technology: magnetic
Construction: solid-shaft, multi-turn
Output signal: analog, current output, CANopen, with SSI interface, SAE J1939
Material: stainless steel, aluminum
Protection level: IP67, IP69
Housing diameter: 36 mm
(1.42 in)

Description

Encoder with measurement range up to 31 revolutions Specifications Output - Voltage 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire Voltage or current output, programmable/tare function SSI CANopen CANopen redundant SAE J1939 SAE J1939 redundant Measurement range - Up to 31 x 360° (31 revolutions) Resolution - Up to 16 bit Linearity - ±(2°+ 0.015 % f.s.) Repeatability - 0.1° Housing material - Aluminum (housing), stainless steel (shaft) Connection - Connector M12, 5 pin Weight (without cable) - Approx. 120 g
