Multi-turn angle encoder posihall® PH58
absolutemagneticsolid-shaft

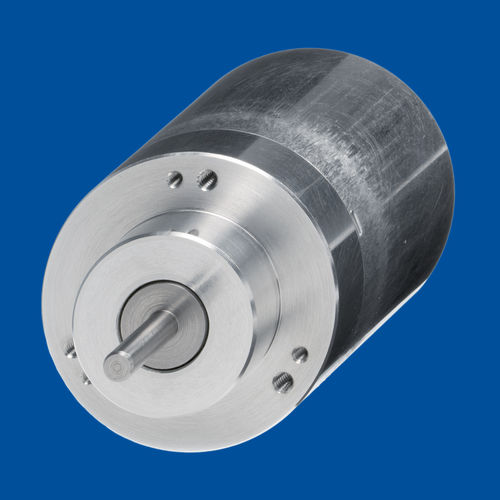

Multi-turn angle encoder - posihall® PH58 - ASM Automation Sensorik Messtechnik GmbH - absolute / magnetic / solid-shaft

Add to favorites

Compare this product

Go to the ASM Automation Sensorik Messtechnik GmbH website for more information

Characteristics

Type: absolute
Technology: magnetic
Construction: solid-shaft, multi-turn
Output signal: analog, current output, CANopen
Material: stainless steel, aluminum
Protection level: IP67, IP69
Other characteristics: redundant, programmable
Housing diameter: 58 mm
(2.28 in)

Description

Encoder with measurement range up to 255 revolutions Specifications Output - Voltage 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire Voltage or current output, programmable/tare function Voltage or current output, redundant CANopen CANopen redundant SAE J1939 SAE J1939 redundant Measurement range - Up to 255 x 360° (255 revolutions) Resolution - Up to 16 Bit Linearity - ±(2°+ 0.015% f.s.) Repeatability - 0,1° Housing material - Aluminum (housing), stainless steel (shaft) Connection - Connector M12, 5 pin Weight (without cable) - Approx. 400g
