Tape position sensor positape® WBT21
angularcontactlessmagnetic

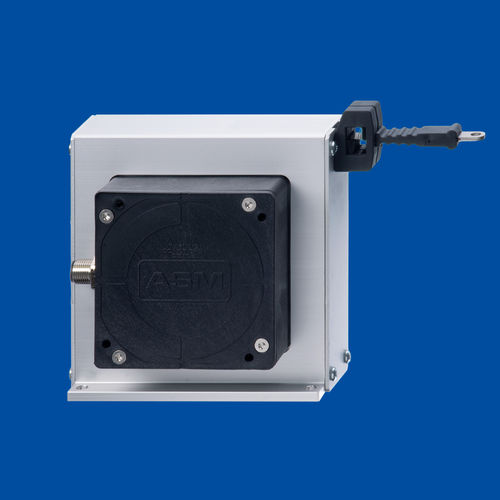

Tape position sensor - positape® WBT21 - ASM Automation Sensorik Messtechnik GmbH - angular / contactless / magnetic
Tape position sensor - positape® WBT21 - ASM Automation Sensorik Messtechnik GmbH - angular / contactless / magnetic
Add to favorites
Compare this product

Go to the ASM Automation Sensorik Messtechnik GmbH website for more information

Characteristics

Type
tape, angular
Contact / non-contact
contactless
Technology
magnetic, MEMS
Output signal
CANopen
Protection class
IP67, IP69
Applications
industrial, heavy-duty, OEM applications, for agricultural machinery, long-range
Other characteristics
rugged, redundant
Measuring range

20,000 mm
(787.4 in)

Linearity

Min.: 0.1 %

Max.: 0.2 %

Ambient temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

With inclination sensor in MEMS technology Optional redundant version Specifications Resolution - adjustable via CAN bus Linearity (position) - Up to ±0.05 % f.s. Sensing device - Magnetic absolute encoder / MEMS element Housing material - Aluminum and PBT Measuring tape: stainless steel, 10 mm wide, 0.08 mm thick Connection - Connector M12 Weight - Max. 4 kg

Catalogs

WBT21
WBT21
11 Pages
