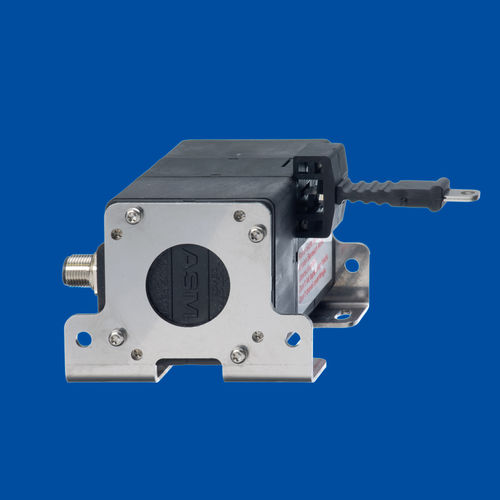

Tape position sensor positape® WBT61angularcontactlessmagnetic
Add to favorites
Compare this product
Characteristics
- Type
- tape, angular
- Contact / non-contact
- contactless
- Technology
- magnetic, MEMS
- Output signal
- CANopen
- Protection class
- IP67, IP69
- Applications
- industrial, heavy-duty, OEM applications, for agricultural machinery
- Other characteristics
- rugged, absolute, redundant
- Measuring range
4,000 mm
(157.48 in)- Linearity
Min.: 0.1 %
Max.: 0.2 %
- Ambient temperature
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)
Description
With inclination sensor in MEMS technology
Optional redundant version
Specifications
CANopen redundant
Resolution - adjustable via CAN bus
Sensing device - Magnetic absolute encoder / MEMS element
Housing material - PBT and stainless steel
Measuring tape: stainless steel, 10 mm wide, 0.08 mm thick
Connection - Connector M12
Weight - max. 2 kg
