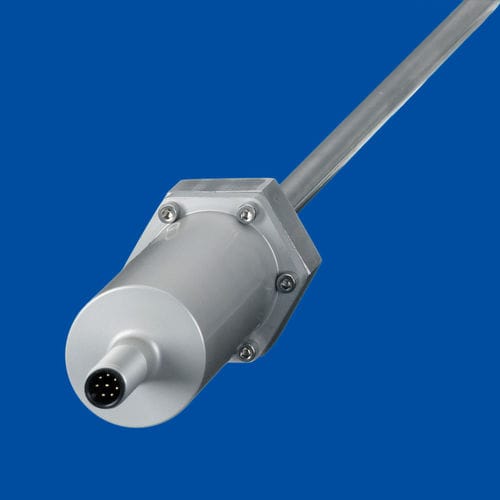

Linear position sensor posichron® PCST24
non-contactmagnetostrictiveanalog output

Linear position sensor - posichron® PCST24 - ASM Automation Sensorik Messtechnik GmbH - non-contact / magnetostrictive / analog output
Linear position sensor - posichron® PCST24 - ASM Automation Sensorik Messtechnik GmbH - non-contact / magnetostrictive / analog output
Add to favorites
Compare this product

Go to the ASM Automation Sensorik Messtechnik GmbH website for more information

Characteristics

Type
linear
Contact / non-contact
non-contact
Technology
magnetostrictive
Output signal
analog output, CANopen, with SSI interface
Measurement object
metal
Protection class
IP67, IP69
Applications
industrial, for cylinders, rugged
Other characteristics
cylindrical
Measuring range

Min.: 100 mm
(3.94 in)

Max.: 5,750 mm
(226.38 in)

Linearity

Min.: 0.1 %

Max.: 0.5 %

Ambient temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

Specifications Output - Voltage 0... 10 V, 0.5 … 10 V, 0.5 … 4.5 V Current 4 ... 20 mA, 3 wire Voltage or current output, programmable (PMU) Resolution - Analog: 16 Bit f.s., min. 10 µm SSI: 5, 10, 20, 50, 100 µm CAN: 50 µm Linearity - Up to ±0.02 % f.s. Repeatability - ±3 µm Housing material - Sensor rod: stainless steel EN 1.4404 (AISI 316L) Head: AIMgSi Connection - Connector M12, 8 pin / cable, standard length 2 m CAN: connector M12, 5 pin Mounting - Thread M18x1.5 / thread ¾ inch Working pressure - 400 bar, higher values on request
