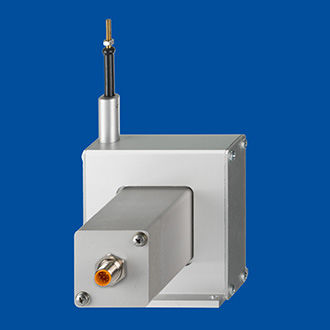

Draw-wire position sensor posiwire® WS17KTpotentiometeranalogwith SSI interface
Add to favorites
Compare this product
Characteristics
- Type
- draw-wire
- Technology
- potentiometer
- Output signal
- analog, with SSI interface
- Measurement object
- metal
- Protection class
- IP64, IP66
- Applications
- industrial
- Other characteristics
- precision, long-range
- Measuring range
15,000 mm
(590.55 in)- Linearity
0.1 %
- Ambient temperature
Max.: 85 °C
(185 °F)Min.: -20 °C
(-4 °F)
Description
With precision potentiometer
Optional integrated brake
Specifications
Output - Potentiometer 1 kΩ
Voltage 0... 10 V, 0.5 … 10 V
Current 4 ... 20 mA, 2 or 3 wire
Voltage or current output, programmable (PMUV/PMUI)
SSI
Resolution - Analog: essentially infinite
ADSI16: max. 16 bit f.s.
Linearity - Up to ±0.05 % f.s.
Sensing device - Precision potentiometer
Housing material - Aluminum,
Measuring cable: stainless steel
Connection - Connector M12
Weight - Approx. 1.4 kg to approx. 6 kg depending on measurement range
