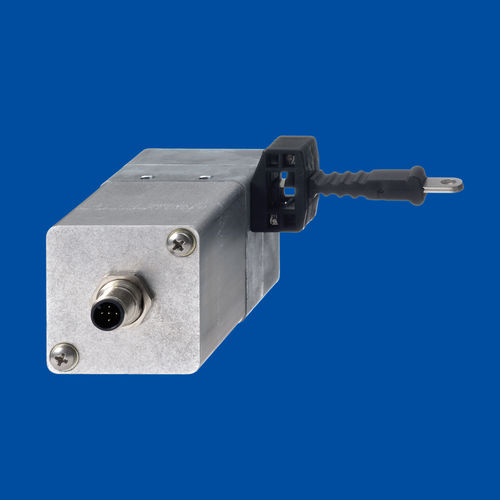

Tape position sensor positape® WB10ZG
magneticCANopenwith SSI interface

Tape position sensor - positape® WB10ZG - ASM Automation Sensorik Messtechnik GmbH - magnetic / CANopen / with SSI interface
Tape position sensor - positape® WB10ZG - ASM Automation Sensorik Messtechnik GmbH - magnetic / CANopen / with SSI interface
Add to favorites
Compare this product

Go to the ASM Automation Sensorik Messtechnik GmbH website for more information

Characteristics

Type
tape
Technology
magnetic
Output signal
CANopen, with SSI interface
Measurement object
metal
Protection class
IP65
Applications
heavy-duty
Other characteristics
compact, absolute
Measuring range

2,000 mm
(78.74 in)

Linearity

0.1 %

Ambient temperature

Min.: -20 °C
(-4 °F)

Max.: 85 °C
(185 °F)

Description

Specifications Resolution - < 0.05 mm Sensing device - Magnetic absolute encoder Housing material - Zinc die cast, aluminum Measuring tape: stainless steel, 10 mm wide, 0.08 mm thick Connection - Connector M12 Weight - Approx. 1.3 kg
