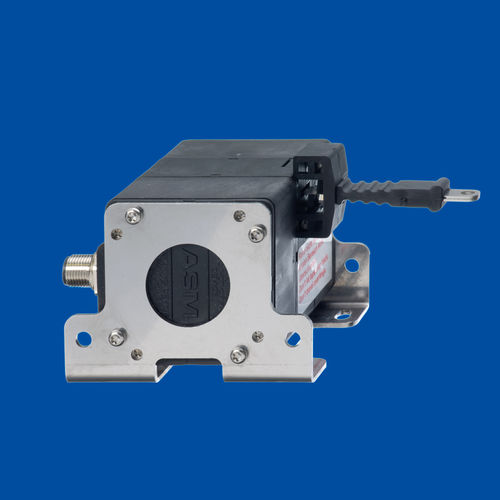

Tape position sensor positape® WB61
magneticanalog outputCANopen

Tape position sensor - positape® WB61 - ASM Automation Sensorik Messtechnik GmbH - magnetic / analog output / CANopen
Tape position sensor - positape® WB61 - ASM Automation Sensorik Messtechnik GmbH - magnetic / analog output / CANopen
Add to favorites
Compare this product

Go to the ASM Automation Sensorik Messtechnik GmbH website for more information

Characteristics

Type
tape
Technology
magnetic
Output signal
analog output, CANopen, with SSI interface
Measurement object
metal
Protection class
IP67, IP69
Other characteristics
compact, rugged, stainless steel
Measuring range

Max.: 4,000 mm
(157.48 in)

Min.: 0 mm
(0 in)

Linearity

0.1 %

Ambient temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

Specifications Output - Voltage 0.5... 10 V Voltage 0.5... 4.5 V Current 4 ... 20 mA, 3-wire technology Voltage or current output, programmable Voltage or current output, redundant Resolution - < 0.05 mm Sensing device - Magnetic absolute encoder Housing material - PBT and stainless steel Measuring tape: stainless steel, 10 mm wide, 0.08 mm thick Connection - Connector M12 Weight - max. 2 kg
