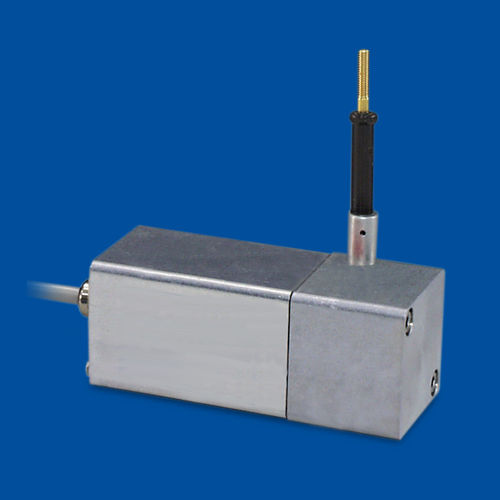

Draw-wire position sensor posiwire® WS10EXpotentiometeranalog outputmetal
Add to favorites
Compare this product
Characteristics
- Type
- draw-wire
- Technology
- potentiometer
- Output signal
- analog output
- Measurement object
- metal
- Protection class
- IP65
- Applications
- industrial, rugged
- Other characteristics
- compact, precision, explosion-proof
- Measuring range
1,250 mm
(49.21 in)- Linearity
0.1 %
- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 85 °C
(185 °F)
Description
With explosion protection (dust-EX)
Specifications
Voltage 0... 10 V
Current 4 ... 20 mA, 2 or 3 wire
Resolution - Analog: essentially infinite
Sensing device - Precision potentiometer
Housing material - Aluminum
Measuring cable: stainless steel
Protection class
Dust-EX-proof: II 3D Ex tc IIIC T80°C Dc X
(X = examined with low impact energy of 4 J)
Connection - Cable output, standard length 2 m
Weight - Approx. 600 g
Explosion-proof - DIN EN 60079-0 (September 2019)
DIN EN 60079-31 (December 2014))
