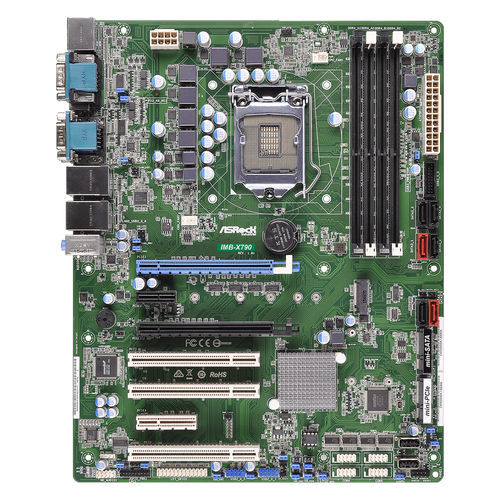

ATX motherboard IMB-X790

Intel® Skylake Processor6th generation Intel® Core™Intel® Kaby Lake Processor

Capacity - 64GB Socket - 4 x Long-DIMM Graphics Controller - Intel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4 DisplayPort - Supports max resolution up to 4096 x 2160@60Hz VGA - Supports max resolution up to 1920 x 1200 MultiDisplay - Triple Display Expansion Slot PCIe - 1 x PCIe x16(Support riser card), 1 x PCIe x8, 1 x PCIe x4, 1 x PCIe x1 **Slot1: Gen3 x16 link, auto switch to x8 link if Slot3 is occupied. PCI - 3 Audio Interface - Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in Ethernet Controller/ Speed - LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps Rear I/O VGA - 1 Ethernet - 2 x 1 Gigabit LAN USB - 4 x USB 3.0 Audio - 3 (Mic-in, Line-in, Line-out) PS2 - 1 x PS/2 combo Internal Connector Parallel - 1 (shared with GPIO) GPIO - 8 x GPI, 8 x GPO (shared with LPT header) TPM - TPM 2.0 onboard IC Storage M.2 - 1 x M.2 (Key M, 2230/2242/2260/2280/22110) with PCIe x4 and shared SATA3 for SSD mSATA - 1 x Full size with shared SATA3 and USB 2.0 SATA - 6 (SATA1 shared with MSATA, SATA5 shared with M.2) Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 segments, 0,1,2…255sec Power Requirements Power On - AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready Environment Operating Temp - 0ºC ~ 60ºC Storage Temp - -40° C – 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Accessories Gift Package - 1 x SCREW M2,D=5 (13G020302031AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020341000AK) 2 x SATA Data Cable (14G00010107DAK) Bulk Package - 1 x SCREW M2,D=5 (13G020302031AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020341000AK)
