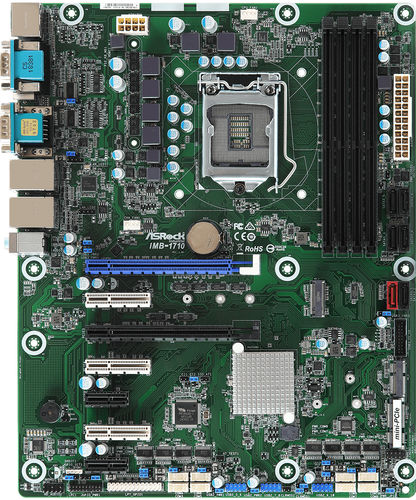

ATX motherboard IMB-1710

Intel® Celeron®Intel® Core i3Intel® Core i5

Processor System BIOS - AMI SPI 128 Mbit Form Factor Memory Intel Core i3/Pentium/Celeron CPUs support up to 64GB (16GB per DIMM)) Socket - 4 x 288-pin Long-DIMM Graphics Controller - Coffee Lake integrated graphics Max resolution up to 4096x2160@24Hz VGA - Max resolution up to 1920x1200@60Hz MultiDisplay - Triple Display Expansion Slot PCIe - 3 x PCIE 3.0 Slots (PCIE1/PCIE2/PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE3) ) 2 x PCIE 3.0 x4 Slots (PCIE4) (PCIE6) 2 x PCIE 3.0 x1 Slots (PCIE5) (PCIE7) Audio Interface - Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in Ethernet Controller/ Speed - LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro Connector - 2 x RJ-45 Rear I/O DisplayPort - 2 x DP 1.2 VGA - 1 Ethernet - 2 x 1 Gigabit LAN Audio - 3 (Mic-in, Line-in, Line-out) Internal Connector Parallel - 1 (shared with GPIO) GPIO - 8 x GPI, 8 x GPO (shared with LPT header) TPM - TPM 2.0 onboard IC Speaker Header - 1 Storage Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 segments, 0,1,2…255sec/min Power Requirements Power On - AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready Environment Operating Temp - 0ºC ~ 60ºC Storage Temp - -40° C – 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Accessories Gift Package - 2 x SCREW M2,D=5.3 (13G020302010AK) 1 x I/O Shield (13G020505000AK) 2 x SATA Data Cable (14G00010107DAK) Bulk Package - 2 x SCREW M2,D=5.3 (13G020302010AK) 1 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020505000AK)
