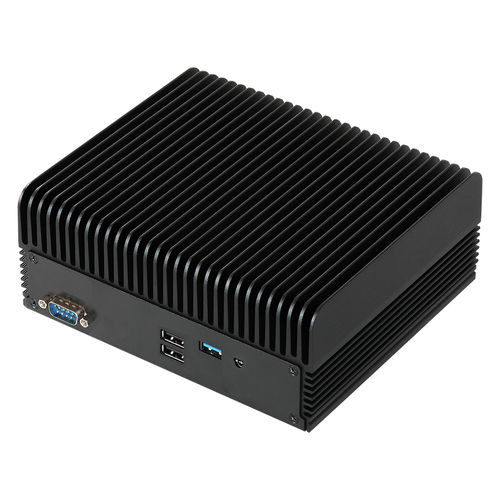

Box PC iBOX-V1000
wall-mountedVESA mountingAMD Ryzen™ Embedded V1605B

box PC
box PC
box PC
box PC
box PC
Add to favorites
Compare this product


Characteristics

Type
box
Configuration
wall-mounted, VESA mounting
Processor
AMD Ryzen™ Embedded V1605B
Ports
SATA III, HDMI, DisplayPort, DDR4 SO-DIMM, USB 2.0, M.2 Key E, RS-232, RJ45, Ethernet, USB 3.2, M.2, M.2 Key M
Data storage
32 GB
Operating system
Windows 10
Domain
construction

Description

Processor System Chipset - SoC BIOS - AMI SPI 64 Mbit Memory Capacity - 32 GB (16 GB per DIMM) Socket - 2 x 260-pin SO-DIMM Graphics Controller - AMD Radeon™ Vega 8 Graphics Max resolution up to 4096x2160@60Hz Max resolution up to 4096x2160@60Hz MultiDisplay - Triple Display Expansion Slot Audio Interface - Realtek ALC233, High Definition Audio, Line-out, Mic-in Ethernet Controller/ Speed - 2 x Realtek RTL8111G with 10/100/1000 Mbps Connector - 2 x RJ-45 Front I/O USB - 1 x USB 3.2 (Gen1) + 2 x USB 2.0 COM - 1 x COM (RS-232) Audio - 1 x Mic-In & Line-Out Combo Jack Rear I/O HDMI - 1 x HDMI 2.0 DisplayPort - 2 x DP 1.2a Ethernet - 2 x 1 Gigabit LAN USB - 2 x USB 3.2(Gen2) DC Jack - 1 Storage M.2 - 1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD *M.2 Key M 2280(optional support, by bracket) SATA - 1 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments 0,1,2....255sec Power Requirements Input PWR - 1 x 12V/96W Power Adapter Power On - AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready Environment Operating Temp - -20ºC ~ 40ºC (With extended temp. peripherals) Storage Temp - -40° C ~ 85° C Operating Humidity - 10% ~ 90% Storage Humidity - 10% ~ 90% Mechanical Construction - Aluminum housing Mounting - VESA mounting bracket, Wall mounting Dimensions (L x W x H) - 171.8 x 150 x 71.5 mm Weight - Net Weight: 2.2kg Others OS Support - Windows 10 Certifications - CE, FCC Class A Packing List - 1 x 12V/96W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket Accessories Bulk Package - 2 x SCREW M2,D=5 (13G020302031AK)
