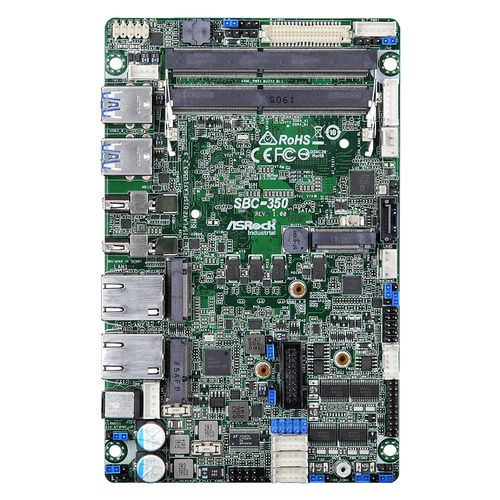

ATX SBC SBC-350

3.5"Intel® Core™ i7-8665UE8th Generation Intel® Core™

Chipset - MCP BIOS - AMI SPI 128 Mbit Form Factor Dimensions - 3.5"SBC (6.3-in x 4.0-in, 16.0 cm x 10.2 cm) Memory Socket - 2 x 260-pin SO-DIMM Graphics Controller - Intel® Gen9 Graphics DX 12 DisplayPort - DisplayPort 1.2, DP++ Max resolution up to 4096 x 2160@60Hz LVDS - Dual channel 24 bit up to 1920 x 1200@60Hz MultiDisplay - Triple Display Expansion Slot Audio Interface - Realtek ALC887/897, High Definition Audio. Line-out,Mic-in Ethernet Controller/ Speed - SBC-350P/ SBC-350M LAN1: Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro LAN2: Intel® I210AT with 10/100/1000 Mbps SBC-350V/ SBC-350E LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Intel® I210AT with 10/100/1000 Mbps Connector - 2 x RJ-45 Rear I/O DisplayPort - 2 x DP1.2 ++ Ethernet - SBC-350P/M 1 x Intel I210AT, 1 x Intel I219LM SBC-350V/E 1 x Intel I210AT, 1 x Intel I219V DC Jack - 1 Internal Connector GPIO - 4 x GPI, 4 x GPO TPM - TPM 2.0 onboard IC (SBC-350P/SBC-350M) TPM 2.0 with Bios setting (SBC-350V) LVDS - 1 SATA PWR Output - 1 Speaker Header - 1 Storage RAID - Supports Intel® SATA RAID 0/1 * 7pin SATA signal via M2X4-SATA-4P with M2M_2 slot SATA - 1 x SATA3 (6Gb/s) Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 9~36V DC-In Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - 0ºC ~ 60ºC Storage Temp - -40° C ~ 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Accessories Gift Package - 2 x SCREW M2*2,D=5 (13G020302031AK)
