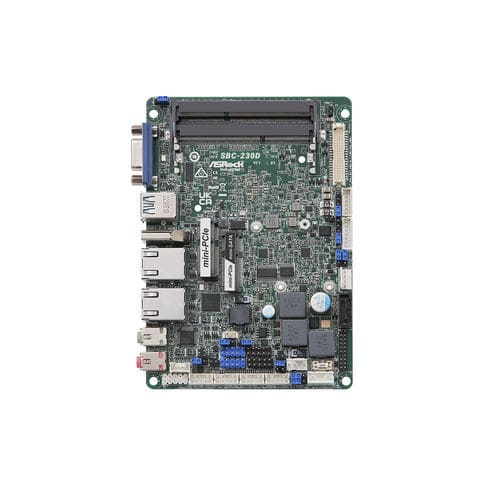

ATX SBC SBC-230D

3.5"Intel® Apollo LakeIntel® Pentium® N4200

Chipset - SoC BIOS - AMI SPI 128 Mbit Form Factor Memory Socket - 2 x 204-pin SO-DIMM Graphics Controller - Intel® Gen9 Graphics DX 12 HDMI - HDMI 1.4b Max resolution up to 4096 x 2160@24Hz VGA - Max resolution up to 1920x1200@60Hz LVDS - Dual channel 24 bit up to 1920x1200@60Hz eDP - Max resolution up to 4096x2160@60Hz MultiDisplay - Triple Display Expansion Slot mini-PCIe - 1 x Full size with PCIe x1 and USB 2.0 mini-PCIe/mSATA - 1 x Full size with USB 2.0 Audio Interface - Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in Ethernet Controller/ Speed - 2 x Intel® I210 with 10/100/1000 Mbps Connector - 2 x RJ-45 Rear I/O VGA - 1 Ethernet - 2 x 1 Gigabit LAN Audio - 2 (Mic-in, Line-out) Internal Connector GPIO - 4 x GPI, 4 x GPO TPM - TPM Header LVDS - 1 (shared with eDP, switch by BIOS) eDP - 1 (shared with LVDS, switch by BIOS) SATA PWR Output - 1 Speaker Header - 1 Storage SATA - 1 x SATA3 (6Gb/s) Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 9~36V DC-In Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - 0ºC ~ 60ºC Storage Temp - -40° C ~ 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Accessories Gift Package - 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x SINK FOR SBC-230 (13G070347000AK) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK) Bulk Package - 2 x SCREW FOR WIFI CARD (13G020305011AK)
