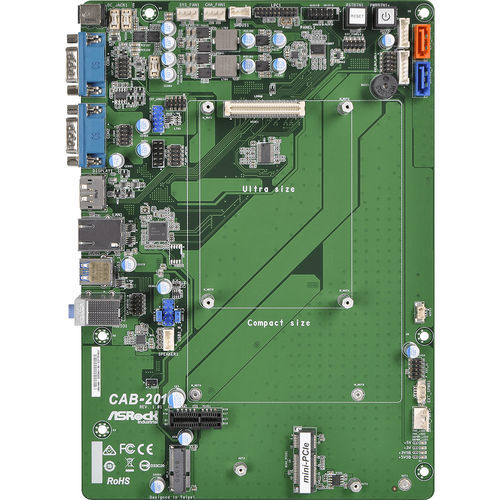

Micro-ATX motherboard CAB-201

pico-ITXIntel® Apollo LakeSATA3

Form Factor Dimensions - Micro ATX (9.6-in x 6.7-in, 24.4 cm x 17.0 cm) Expansion Slot PCIe - 1 x PCIe x1 M.2 - 1 x M.2 Slot (Key E), supports type 2230 for WiFi + BT Module MIO - HDMI or DP , 3 x USB 2.0 or 1 x USB 3.0 + 1 x USB 2.0 4 x PCIe x1 , LPC bus , SMBus Rear I/O DisplayPort - 1 USB - 1 x USB 3.0 , 1 x USB 2.0 DC Jack - 1 Internal Connector USB - 1 x USB 2.0 SATA PWR Output - 1 Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 12V DC-in Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - 0ºC ~ 60ºC Storage Temp - -40° C – 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90%
