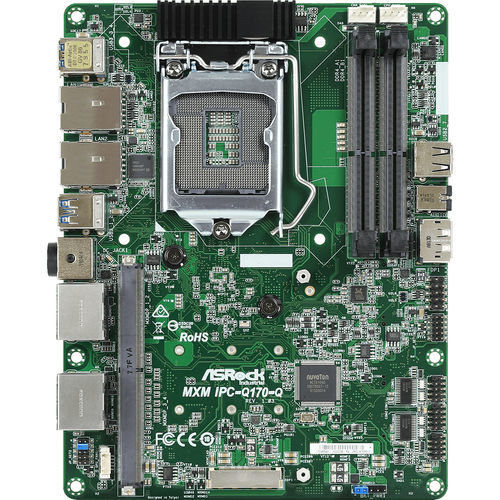

MSTX motherboard MXM IPC-Q170-Q

Intel® Skylake Processor6th generation Intel® Core™Intel® Kaby Lake Processor

Processor System BIOS - AMI SPI 128 Mbit Form Factor Dimensions - Micro-STX (5.8-in x 7.4-in, 14.7 cm x 18.8 cm) Memory Technology - Dual Channel DDR4 2400 MHz Capacity - 32GB (16 GB per DIMM) Socket - 2 x 260-pin SO-DIMM Graphics Controller - Intel® Gen8 Graphics DX 11,OGL3.2 DisplayPort - 1 x Supports max resolution up to 4K@60Hz (CPU integrated graphics) 4 x Supports max resolution up to 4K@60Hz (MXM Graphics Card) MultiDisplay - Penta Display Expansion Slot Audio Interface - Realtek ALC233, High Definition Audio. Ethernet Controller/ Speed - LAN1: 1 x Intel® I210 with 10/100/1000 Mbps LAN2:1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro Connector - 2 x RJ-45 Front I/O DisplayPort - 1 (CPU integrated graphics) Audio - 1 (Mic-in or Line-out) Rear I/O DisplayPort - 4 x DP 1.2 (for VGA card) Ethernet - 2 x 1 Gigabit LAN DC Jack - 1 Internal Connector USB - 2 x USB 2.0 (1 x 2.54 pitch header) TPM - TPM Header Storage M.2 - 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x 4 and SATA3 1 x M.2 (KEY M, 2242/2260/2280) with SATA or PCIe x 4 RAID - Intel® SATA RAID 0/1/5/10 Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 19V DC-In Jack (220W for Quadro P5000, GTX1060/1070, 270W for GTX1080) - AT : Directly PWR on as Power input ready - ATX: Press Button to PWR on after Power input ready Environment Operating Temp - 0ºC ~ 60ºC Storage Temp - -40ºC – 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Accessories Bulk Package - 2 x SCREW FOR WIFI CARD (13G020305011AK) 2 x COM Cable (14G000000340AK) 2 x SATA Data/Power Cable (14G000104502AK)
