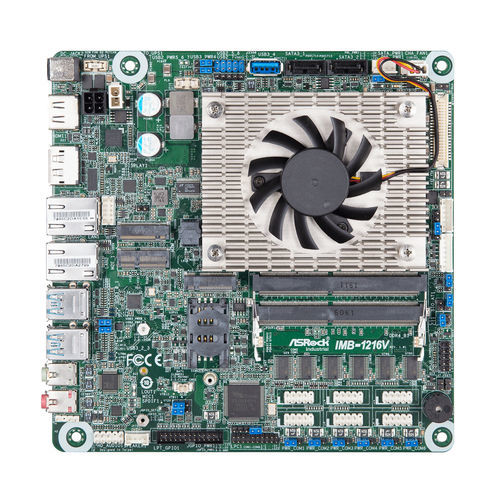

Mini-ITX motherboard IMB-1216

8th Generation Intel® Core™Intel® Whiskey lake-U seriesDDR4 SO-DIMM

Processor System -IMB-1216E (CELERON-4305UE, DC, 2.0GHz,15W) Chipset - MCP BIOS - AMI SPI 128 Mbit Memory Capacity - 32 GB (16 GB per DIMM) Graphics Controller - Intel® Gen9 Graphics DX 11/12 Max resolution up to 4096x2160@60Hz Max resolution up to 4096x2304@60Hz VGA - Max resolution up to 1920x1200@60Hz LVDS - Dual channel 24 bit up to 1920x1200@60Hz eDP - eDP 1.4 Max resolution up to 4096x2304@60Hz MultiDisplay - Triple Display Expansion Slot SIM Socket - 1 x Socket connected to M.2 Key_B Audio Interface - Realtek ALC887, High Definition Audio. Line-out,Mic-in Ethernet Controller/ Speed - IMB-1216P/IMB-1216M LAN1: 1 x Intel I219LM with 10/100/1000 Mbps, supports AMT/vPro LAN2: 1 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps IMB-1216V/IMB-1216E LAN1: 1 x Intel I219V with 10/100/1000 Mbps LAN2: 1 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps Rear I/O Ethernet - 2 x 1 Gigabit LAN Audio - 2 (Mic-in, Line-out) DC Jack - 1 Internal Connector Parallel - 1 (shared with GPIO) GPIO - 8 x GPI, 8 x GPO (shared with LPT header) TPM - IMB-1216P/IMB-1216M: TPM 2.0 IC onboard IMB-1216V/IMB-1216E: TPM Header LVDS - 1 (shared with eDP, by BIOS setting) eDP - 1 (shared with LVDS, by BIOS setting) SATA PWR Output - 1 Speaker Header - 1 Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 12V~28V DC-In with 4-pin plug PWR cable or DC Jack Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - 0ºC ~ 60ºC Storage Temp - -40° C ~ 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90%
