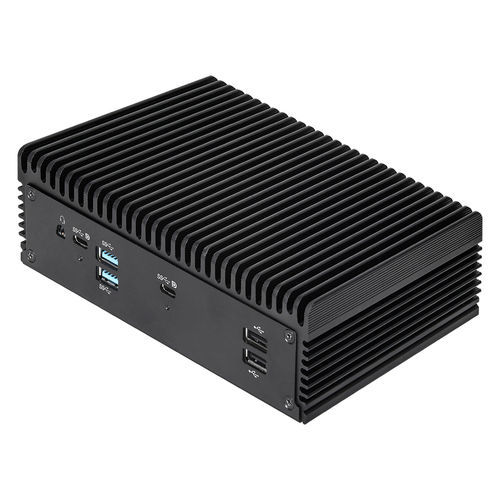

Box PC iBOX-1185G7E

embedded11th Generation Intel® Core™11th Gen Intel® Tiger Lake-UP3 i5-1145G4E

Chipset - MCP BIOS - AMI SPI 256 Mbit Memory Capacity - 64GB (32 GB per DIMM) Socket - 2 x 260-pin SO-DIMM Graphics Controller - Intel® Iris® Xe Graphics HDMI - HDMI 2.0a Max resolution up to 4096x2160@60Hz Max resolution up to 4096x2160@60Hz MultiDisplay - Quad-Display (Included 2 outputs from Type-C) Expansion Slot Audio Interface - Realtek ALC233, High Definition Audio. Ethernet Controller/ Speed - LAN1: Intel® I219LM with 10/100/1000 Mbps, supports vPro LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps Connector - 2 x RJ-45 Front I/O 1 x USB4/Thunderbolt™ 4 (Supports DP1.4 display output) Audio - 1 (headphone & microphone jack) Rear I/O DisplayPort - 1 x DP 1.4 Ethernet - 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN DC Jack - 1 Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 1 x 19V/90W Power Adapter Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - -20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp.) Storage Temp - -40° C – 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Mechanical Construction - Aluminum housing Mounting - VESA mount/Wall mount/Din-rail Dimensions (L x W x H) - 171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97") Weight - Net Weight: 1.6Kg Others OS Support - Windows 10/11 Certifications - CE, FCC Packing List - 1 x 19V/90W Power Adapter 1 x VESA mount bracket Accessories Bulk Package - 2 x SCREW M2*2,D=5 (13G020302031AK) 1 x IBOX VESA MOUNT BRACKET (13G020554000AI) 1 x BRACKET FOR M.2 W/2*SCREW (13G030007000AK) 1 x 19V/90W Power Adapter(04G266001100AI)
