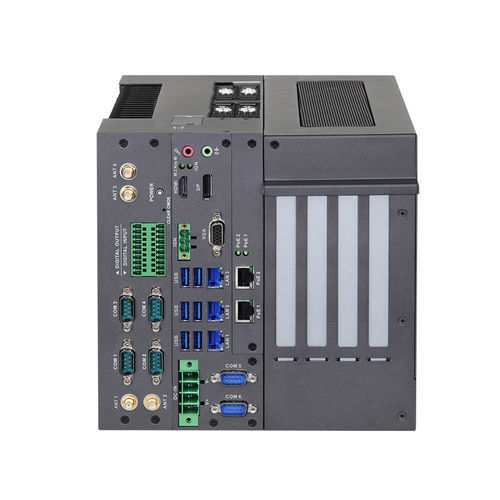

Desktop computer workstation iEPF-9030S-EW4

14th Generation Intel® Core™RS-232Ethernet

Processor System Chipset - Intel® R680E Socket - LGA 1700 Memory (ECC memory supported by R680E + Selected CPU) Capacity - 96 GB (48GB per DIMM) Socket - 2 x 262-pin SO-DIMM Graphics Controller - Intel® UHD Graphics Max resolution up to 4096x2160@60Hz Max resolution up to 4096x2160@60Hz VGA - Max resolution up to 1920x1200@60Hz Expansion Slot PCIe - 1 x PCIe Gen5 x16 (single x16 or dual x8), PCIe x16 slot with default power cable can support up to 180W graphic card (275 mm x 113 mm x 60 mm (L x H x D), if remove the card holder, it can be limited on 275 mm x 138 mm x 60 mm) Graphic card can be up to 600W with optional VGA module　　 1 x PCIe Gen5 x8 (shared with dual x8) 2 x PCIe Gen4 x4 RF& Antenna - 8 x SMA connector hole reserved M.2 - 1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 1 x M.2 (Key B2, 3042/3052) SIM Socket - 2 x Nano SIM Card slot Audio Interface - Realtek ALC897, High Definition Audio. Ethernet Controller/ Speed - 3 x Intel® i226IT (LAN 1 supports vPro) 2 x Intel® i226IT (PoE Support, each port supports IEEE 802.3AT PoE, PoE output max. 30W/single port or 30W/two ports shared) Connector - 5 x RJ45 Front I/O DisplayPort - 1 HDMI - 1 VGA - 1 Ethernet - 5 x Intel 2.5G LAN Audio - 1 x Mic-in, 1 x Line-out Protection, COM5- Isolation Protection , COM6) DIO - 8DIs/8DOs Storage M.2 - 1 x M.2 (Key M1, 2242/2260/2280) with Gen4 x4 for NVMe SSD 1 x M.2 (Key M2, 2242/2280/22110/25110) with Gen3 x4 for NVMe SSD Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 9V~36V VDC with Ignition control and remote power on/off switch. 80V Surge Protection, OVP, UVP, OCP and reverse protection
