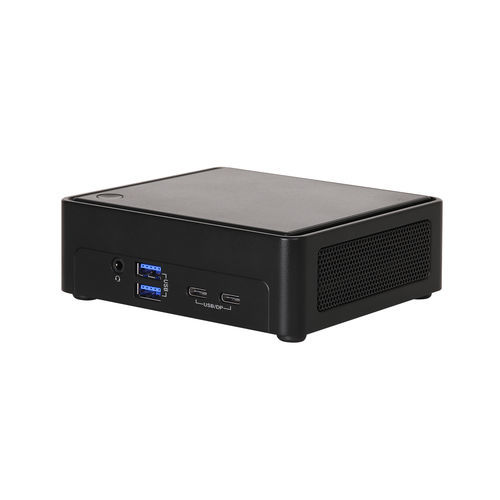

Expansion PC NUCS BOX-155H

Intel® Core™ UltraEthernetDisplayPort

Processor System BIOS - AMI SPI 256 Mbit Memory Technology - Dual Channel DDR5 5600 MHz Capacity - 96GB (48 GB per DIMM) Socket - 2 x 262-pin SO-DIMM Graphics Controller - Intel® Iris® Xe Graphics HDMI - HDMI 2.1 TMDS Max resolution up to 4096x2160@60Hz Max resolution up to 4096x2160@60Hz MultiDisplay - Quad-Display (Included 2 outputs from Type-C) Expansion Slot Audio Interface - Realtek ALC256, High Definition Audio. Ethernet Controller/ Speed - Intel® I226LM with 10/100/1000/2500 Mbps Front I/O USB - 2 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (Supports DP2.1 display output) 1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output) *For Thunderbolt support, please refer to support list. Audio - 1 (headphone & microphone jack) Rear I/O HDMI - 2 x HDMI 2.1 TMDS Ethernet - 1 x 2.5 Gigabit LAN USB - 2 x USB 3.2 Gen2 (Type-A) DC Jack - 1 Storage M.2 - 1 x M.2 (KEY M, 2280) with PCIe Gen4x4 for SSD 1 x M.2 (KEY M, 2242) with PCIe Gen4x1 for SSD RAID - Intel® VMD RAID 0/1 **supported by identical interface (PCIe) PCIe interface: 2*M.2 Key M Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 12V~24V DC-In Jack Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - 0ºC ~ 40ºC Storage Temp - -40° C – 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Mechanical Mounting - VESA mount Dimensions (L x W x H) - 117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50") Weight - Net Weight:1.0Kg Others TPM - Intel® PTT Certifications - CE, FCC Packing List - 1 x 19V/120W Power Adapter (Core Ultra 7) 1 x VESA mount bracket
