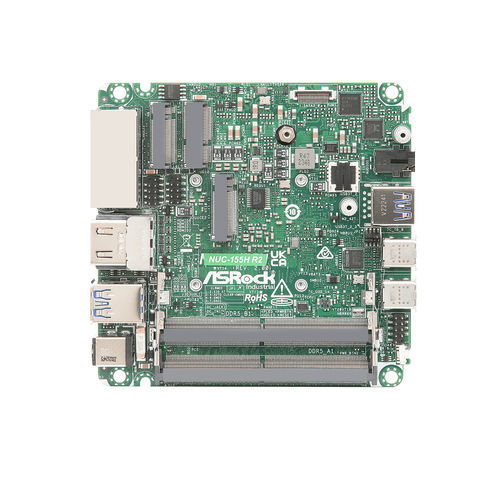

NUC motherboard NUC-155H R2

Intel® Core™ UltraDDR5 SO-DIMMSATA3

Chipset - MCP BIOS - AMI SPI 256 Mbit Form Factor Dimensions - NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm) Memory Technology - Dual Channel DDR5 5600 MHz Capacity - 96GB (48GB per DIMM) Socket - 2 x 262-pin SO-DIMM Graphics Controller - Intel® Arc™ Graphics Max resolution up to 4096x2160@60Hz Max resolution up to 4096x2160@60Hz MultiDisplay - Max 4 display (Included 2 outputs from Type-C) Expansion Slot M.2 - 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless Audio Interface - Realtek ALC256, High Definition Audio. Ethernet Controller/ Speed - LAN1: Intel® I226LM with 10/100/1000/2500 Mbps LAN2: Intel® I226V with 10/100/1000/2500 Mbps Front I/O 1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output) *For Thunderbolt support, please refer to support list. Audio - 1 (headphone & microphone jack) Rear I/O Ethernet - 2 x 2.5 Gigabit LAN USB - 2 x USB 3.2 Gen2 (Type A) DC Jack - 1 Internal Connector COM - 1 x COM(RS-232/RS-422/RS-485) Security TPM - Intel® PTT Storage RAID - Intel® VMD RAID 0/1 **supported by identical interface (PCIe) PCIe interface: 2*M.2 Key M Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 12V~24V DC-In Jack Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - -20ºC ~ 70ºC Storage Temp - -40° C ~ 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Accessories Gift/Bulk Package - 1 x NUT M2 H=3.35mm (13G020271020AK) 3 x SCREW M2*2,D=5 (13G020302031AK) 1 x SATA Data/Power Cable (14G000104503AK) 1 x COM Cable (14G000000340AK)
