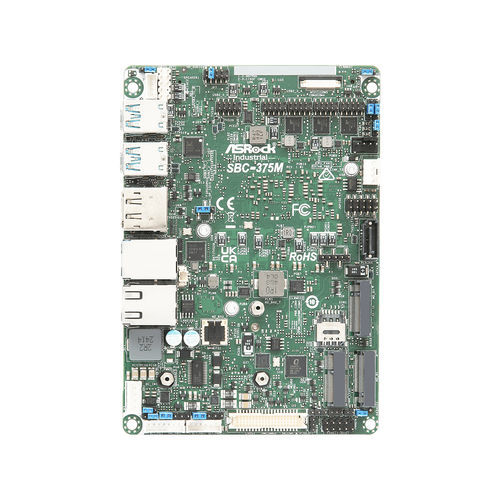

3.5" SBC SBC-375M

Intel® Core™ UltraSATA3M.2 Key M

Processor System SBC-375M (125H, 4P+8E) BIOS - AMI SPI 256 Mbit Graphics Controller - Intel® Arc™ Graphics Max resolution up to 4096 x 2160@60Hz DisplayPort - DP 1.4a Max resolution up to 4096 x 2160@60Hz LVDS - Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) eDP - Max resolution up to 1920 x 1080@60Hz MultiDisplay - Quad display (Included 2 output from Type-C) Expansion Slot SIM Socket - 1 x SIM socket connected to M.2 key B Audio Interface - Realtek ALC256 HD, High Definition Audio. Ethernet Controller/ Speed - LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I210AT with 10/100/1000 Mbps Connector - 2 x RJ-45 Rear I/O HDMI - 1 x HDMI 2.1 TMDS DisplayPort - 1 x DP 1.4a Ethernet - 1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN USB - 2 x USB 3.2 Gen2 2 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output) Internal Connector USB - 4 x USB 2.0 (2 x 2.54 pitch header) GPIO - 4 x GPI, 4 x GPO SATA PWR Output - 1 Speaker Header - 1 MIPI Camera Header - 1 Security TPM - TPM 2.0 onboard IC Storage SATA - 1 x SATA3 (6Gb/s) RAID - Intel® VMD RAID 0/1 **supported by PCIE interface Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 12~36V DC-In with 4-pin wafer PWR cable 12V DC-In only (BOM option) Power On - AT/ATX Supported - AT : Directly PWR on as po wer input ready - ATX : Press button to PWR on after po wer input ready Environment Operating Temp - -20ºC ~ 70ºC Storage Temp - -40°C ~ 85°C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90%
