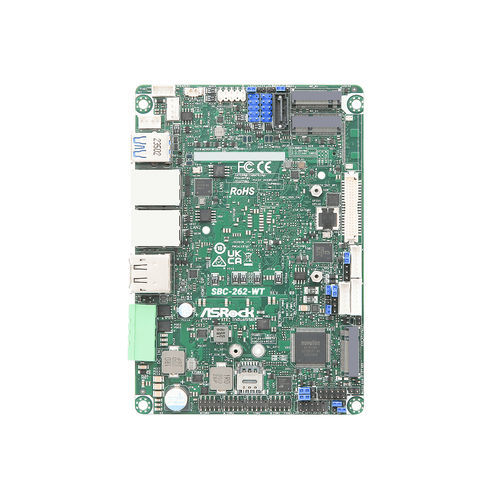

3.5" SBC SBC-262M-WT

Intel® Apollo LakeM.2 Key MM.2 Key E

Processor System X7433RE, QC, Max Speed Up to 3.4GHz, 9W BIOS - AMI SPI 256 Mbit Socket - 1 x 262-pin SO-DIMM Graphics Controller - Intel® UHD Graphics HDMI - HDMI 2.0b Max resolution up to 4096 x 2160@60Hz Max resolution up to 4096 x 2160@60Hz LVDS - Dual channel 24 bit up to 1920 x 1200@60Hz eDP - eDP 1.4b Max resolution up to 4096x2160@60Hz MultiDisplay - Triple display Expansion Slot 1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.2 Gen1, USB2.0 and SIM for 4G/5G SIM Socket - 1 x SIM socket connected to M.2 key B Audio Interface - Realtek ALC256 HD, High Definition Audio. Ethernet Controller/ Speed - LAN1: Intel® I226IT with 10/100/1000/2500 Mbps, supports TSN LAN2: Intel® I210IT with 10/100/1000 Mbps Rear I/O HDMI - 1 x HDMI 2.0b DisplayPort - 1 x DP 1.4a Ethernet - 1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN USB - 2 x USB 3.2 Gen2 Power in - 1 x Phoenix Connector Internal Connector USB - 4 x USB 2.0 (2x2.54 pitch header) COM - COM3, COM4 (RS-232) COM1, COM2 (RS-232/422/485) GPIO - 4 x GPI, 4 x GPO LVDS - 1 eDP - 1 SATA PWR Output - 1 Speaker Header - 1 MIPI Camera Header - 1 Security TPM - TPM 2.0 onboard IC (Optional) Storage Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - -40° C ~ 85° C Storage Temp - -40° C ~ 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90%
