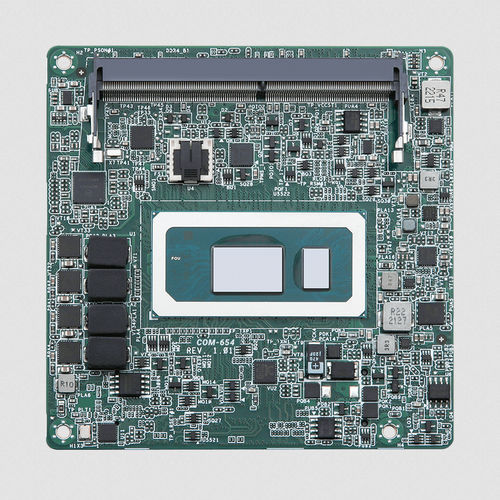

ATX computer-on-module COM-654M

COM Express Compact12th Generation Intel® Core™Intel® Core™ i5-1245UE

Chipset - MCP BIOS - AMI SPI 256 Mbit Form Factor Dimensions - COM Express Compact Type 6 (3.74-in x 3.74-in x 0.52-in, 9.5 cm x 9.5 cm x 1.3 cm) Graphics Controller - Intel® Iris® Xe Graphics Max resolution up to 4096x2160@60Hz DisplayPort - DisplayPort 1.4a, DP++ Max resolution up to 4096x2304@60Hz VGA - Max resolution up to 1920x1200@60Hz LVDS - Dual channel 24 bit up to 1920 x 1200@60Hz eDP - eDP 1.4b Max resolution up to 4096 x 2304@60Hz (optional) MultiDisplay - Quad Display Expansion Slot PCIe - 1 x PCIe x8 (Gen4) (Support by 45W CPU SKUs) 1 x PCIe x4 (Gen4) 4 x PCIe x1 (Gen3) Ethernet Controller/ Speed - COM-654P / COM-654M: 1 x Intel® I225LM with 10/100/1000/2500 Mbps, support AMT/vPro COM-654V: 1 x Intel® I225LM with 10/100/1000/2500 Mbps Front I/O HDMI - DDI1 / 2 support HDMI / DP DisplayPort - DDI1 / 2 support HDMI / DP DDI3 support DP VGA - 1 LVDS - 1 eDP - 1 (optional) USB - 4 x USB 3.2 (Gen2), 8 x USB 2.0 COM - Two UART Ports GPIO(Phoenix) - 4 x GPI, 4 x GPO I/O Ethernet - 1 x 2.5 Gigabit LAN Storage SATA - 2 x SATA3 (6Gb/s) RAID - SATA: Intel® VMD RAID 0/1 PCIe: Intel® VMD RAID 0/1/5/10 Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - ATX: 12V±5%/5Vsb±5% AT: 12V±5% Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - -20ºC ~ 70ºC Storage Temp - -40° C – 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90%
