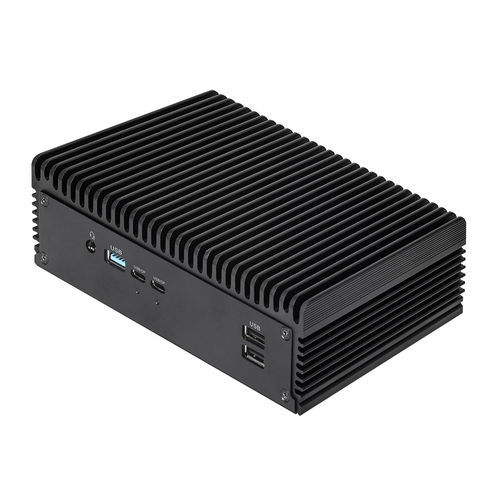

Embedded PC iBOX-125U

boxIntel® Core™ UltraEthernet

Chipset - MCP BIOS - AMI SPI 256 Mbit Form Factor Dimensions - 200 x 200 x 35mm (WxDxH) Memory Socket - 2 x 262-pin SO-DIMM Graphics Controller - Intel® Graphics Max resolution up to 4096x2160@60Hz Max resolution up to 4096x2160@60Hz MultiDisplay - Quad-Display (Included 2 outputs from Type-C) Expansion Slot M.2 - 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless Audio Interface - Realtek ALC256, High Definition Audio. Ethernet Controller/ Speed - LAN1: Intel I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel I226V with 10/100/1000/2500 Mbps Front I/O 1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output) 1 x USB3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP1.4a display output) 2 x USB 2.0 *For Thunderbolt support, please refer to support list. Audio - 1 (headphone & microphone jack) Rear I/O Ethernet - 2 x 2.5 Gigabit LAN DC Jack - 1 Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 12V~24V DC-In Jack Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - -20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals) Storage Temp - -40° C – 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Mechanical Construction - Aluminum housing Mounting - VESA mount/Wall mount/Din-rail Dimensions (L x W x H) - 171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97") Weight - Net Weight:1.6Kg Others TPM - Intel® PTT Certifications - CE, FCC Packing List - 1 x 19V/90W Power Adapter 1 x Wall mount kit
