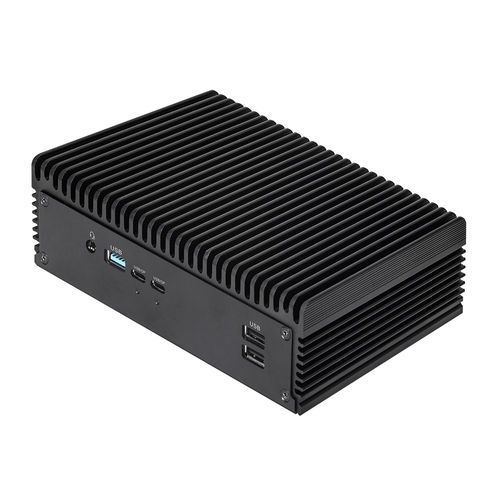

Box PC iBOX-155U

embeddedwall-mountedDIN rail

Chipset - MCP BIOS - AMI SPI 256 Mbit Form Factor Dimensions - 200 x 200 x 35mm (WxDxH) Memory Socket - 2 x 262-pin SO-DIMM Graphics Controller - Intel® Graphics Max resolution up to 4096x2160@60Hz DisplayPort - DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz MultiDisplay - Quad-Display (Included 2 outputs from Type-C) Audio Interface - Realtek ALC256, High Definition Audio. Ethernet Controller/ Speed - LAN1: Intel I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel I226V with 10/100/1000/2500 Mbps Connector - 2 x RJ-45 Front I/O USB - 1 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output) 1 x USB3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP1.4a display output) 2 x USB 2.0 *For Thunderbolt support, please refer to support list. Audio - 1 (headphone & microphone jack) Rear I/O Ethernet - 2 x 2.5 Gigabit LAN COM - 1 x COM(RS-232) DC Jack - 1 SATA - 1 x SATA3.0 (6.0 Gb/s) Watchdog Timer Output - From Super I/O to drag RESETCON# Interval - 256 Segments, 0, 1, 2, ...255sec Power Requirements Input PWR - 12V~24V DC-In Jack Power On - AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready Environment Operating Temp - -20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals) Storage Temp - -40° C – 85° C Operating Humidity - 5% ~ 90% Storage Humidity - 5% ~ 90% Mechanical Construction - Aluminum housing Dimensions (L x W x H) - 171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97") Weight - Net Weight:1.6Kg Others TPM - Intel® PTT Certifications - CE, FCC
