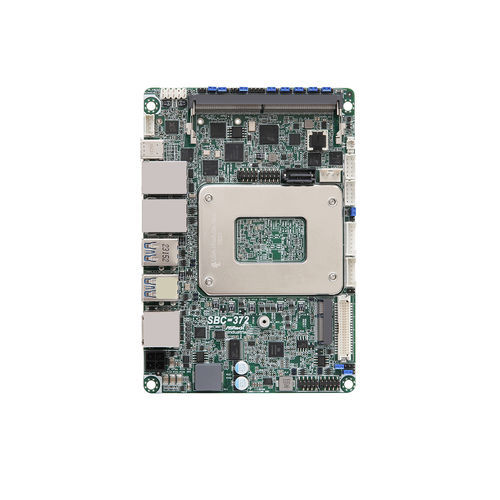

3.5" SBC SBC-372

Intel® Alder Lake-SSATA3M.2 Key M

Socket - LGA 1700 BIOS - AMI SPI 256 Mbit Secure Flash - AMI SPI 32Mbit (Optional) Form Factor Dimensions - 3.5"SBC (5.8-in x 4-in x 1.2-in, 14.7 cm x 10.2 cm x 2.95 cm) Memory Technology - Dual Channel DDR5 4800 MHz Capacity - 32GB Socket - 1 x 262-pin SO-DIMM Graphics Controller - Intel® Iris® Xe Graphics HDMI - HDMI 2.0b Max resolution up to 4096 x 2160@60Hz DisplayPort - DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz LVDS - Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) eDP - Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) MultiDisplay - Quad display (Included 2 output from Type-C) Expansion Slot M.2 - 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0o fr Wireless Audio Interface - Realtek ALC256 HD, High Definition Audio. Ethernet Controller/ Speed - LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I210AT with 10/100/1000 Mbps Connector - 2 x RJ-45 Rear I/O HDMI - 1 x HDMI 2.0b DisplayPort - 1 x DP 1.4a++ Ethernet - 1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN USB - 4 x USB 3.2 Gen2 1 x USB 4/Thunderbolt™4 (5V/3A, Support DP 1.4a display output) * For Thunderbolt support, please refer to support list. Internal Connector USB - 4 x USB 2.0 (2 x 2.00 pitch header) COM - COM1, COM2 (RS-232/422/485) GPIO - 4 x GPI, 4 x GPO LVDS - 1 (Connector with LVDS/eDP signal, switch by BIOS)
