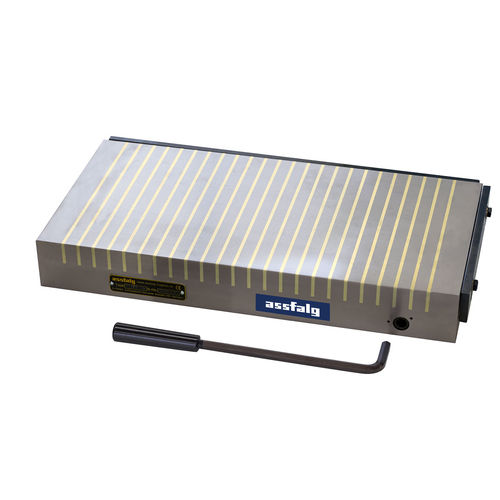

Permanent magnet magnetic chuck Permamax

rectangularfor milling

The Permamax is an extremely strong Permanent Magnetic Chuck - manually switched ON/OFF. It can be used universally for small and large, thin and thick workpieces on machine tools - especially for milling. Application: - Universal use, especially for milling of small and big workpieces (>30 × 15 × 6 mm) - For thin, ferromagnetic workpieces from 0.8 mm thickness, as well as for thick workpieces Features: - Liquid tight - Surface can be machined down by 2mm and partially drilled up to 8mm - Switched ON/OFF mechanically - Workpieces can be clamped stress-free and fast - 5-side processing, as only one side is magnetically clamped - High power and flat magnetic field (max. 10mm penetration into workpiece) - Adhesive force: up to 140 N/cm2 with pole pitch 12 + 3 mm (highest power is concentrated within 20 mm from edges)
