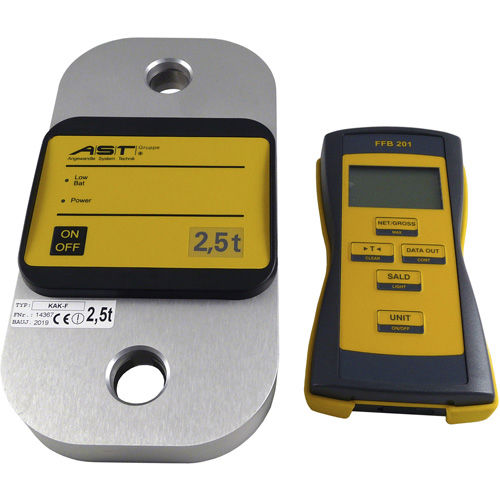

Compression load cell KAK-F

block typecapacitivecompact

• - Link load cell, including transport case, CD-ROM with operating instructions, ASTAS PC software, and USB connection cable • - 1t to 100t capacities • - Wireless data transmission High accuracy Summing function • - Software for data transmission to PC Applications • - Under hook crane weighing • - Measurements of cable tension • - Determination of loads in wire rope The load link model KAK-F is a compact measuring device for the determination of loads in wire rope and cranes. With the assistance of shackles, hooks and master links the load link will be completed to a crane scale. The load link is equipped with RRF remote control unit operates at 868 MHz and allows complete control of the scale. The measuring data can be transferred to a PC. The load link operates independent of mains and its operation time, with a fully charged battery, amounts to at least 140 hours. Special features • - 1.0t to 100t capacities • - Accuracy class 0.2 % • - For use with standard lifting shackles • - Wireless data transmission • - Serial interface (RS232) • - Anodised aluminium alloy and stainless steel brushes • - Low weight
