Position measuring system EKM 305-F

loadgeometriclaser

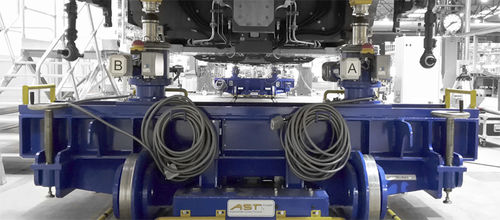

• - designed for corner-load measurements of car bodies for final assembly and maintenance processes providing low-torsion position according DIN25043-4 standard • - system consisting of two rail-mounted trolleys each with two precision driven gear units and force transducers • - flexible alignment of the force transducers in the longitudinal and transverse direction • - measurement of corner-loads, centre of gravity and displacements (precision lifting gears) • - basis for geometrical measurement according DIN25043 standard with e. g. CBM • - native operating software for process control, evaluation and archiving EKM 305-F The highest standard in final assembly In consideration of the corner force measurement method, the system determinates and adjusts the passenger car bodies to torsion free position and its centre of gravity, according to DIN 25043 standard. Afterwards it starts the geometrical measuring sequence via CBM 305 software by using laser tracker or tachymeter. The EKM 305-F is the suitable corner force measurement system for final assembly of rail car bodies. Its measurement bogies are designed as perfect compromise between flexibility and robustness. They are easily moveable by hand under the lifted finished car body. The rigid design ensures accurate corner force measurement as well as displacement among each lifted corner of the car body. Similar to the EMK 305-S the well-proven measuring units (precision lifting gears) are used to move the car body in the torsion free position. The result of the measurement process allows a declaration about the height of necessary bogie shims.
